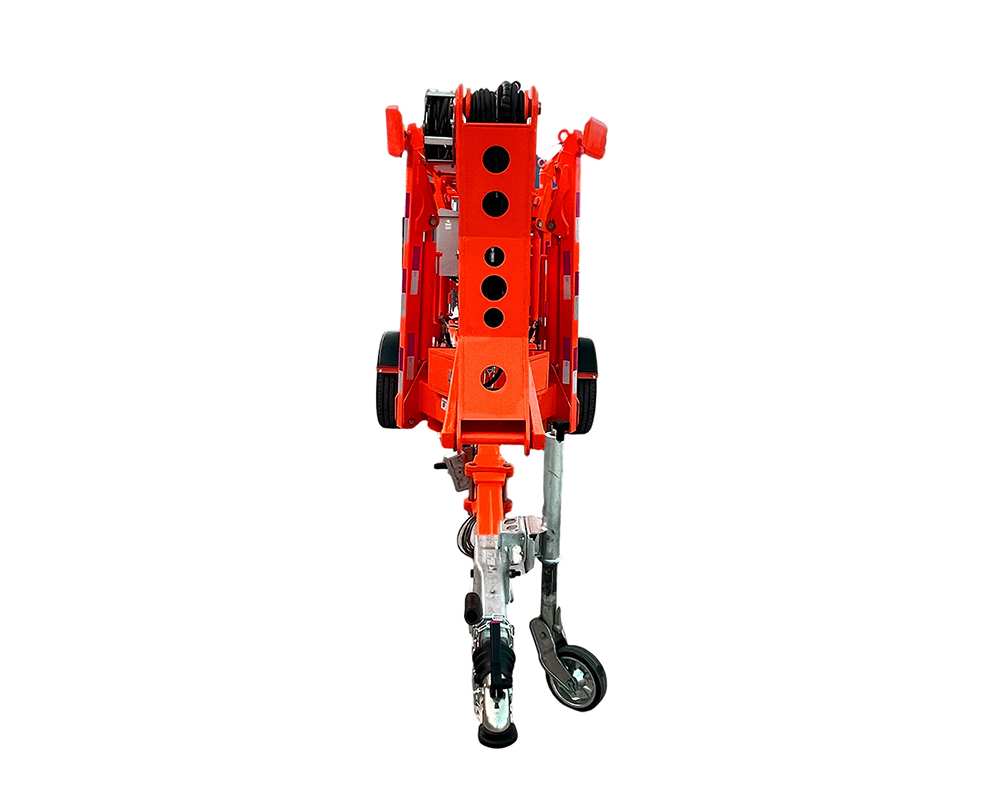

20 m Towable Boom Lift (TBL20)
The ZMT TBL20 is a high-reach trailer-mounted boom lift designed for building maintenance, utility projects, lighting, signage and construction work. Its 20 m platform height supports access to taller structures while the towable design remains practical for contractors working across multiple sites. Available power, drive and rotation configurations can be matched to the towing conditions, working environment and project requirements.
Send us your required lifting capacity or working height, job-site conditions, preferred power source and destination country. ZMT will recommend the suitable configuration and provide a project-specific quotation.
TBL20 Towable Boom Lift Specifications
| Maximum operating height | About 22 m |
| Maximum platform height | 20 m |
| Rated load | 200 kg |
| Working radius | 11 m |
| Rotation range | 359°Discontinuous rotation |
| Bed dimension | 900×700×1100 mm |
| Overall size | 6.5×1.8×2.25 m |
| Number of outstretched arms | 2+1 |
| Leg development area | 6.8×6.8 m |
| Total weight | 3800 kg |
| Power source | Petrol/diesel/AC Power One out of three |
| Oil cylinder | Japanese NOK seal ring |
| Rotating support | Fully sealed dust-free rotation |
| Axle | Self-balancing torque shaft |
| Inertia drawbar | International standard towing device |
| Control mode | Up and down control |
| Fuel injection pipe | 2SN10-53MPA |
| Tyres | Industrial tyres |
| Overload device | Overload warning |
| Onboard diagnostic system | Digital display control |
| Options | 360°Continuous rotation/close drive device/dual-power |
| Features: The machine has overload, over limit, tilt alarm Failure emergency descent system Multilingual touch LCD display control system Emergency stop button with action buzzer in operation Maintenance-free battery, smart charging |
|
| Accessory: Toolbox set, 1 hard hat, 1 Safety belt, Toggle switch 2 / set, Cylinder seal ring 1 set/set, Instruction manual |
|
