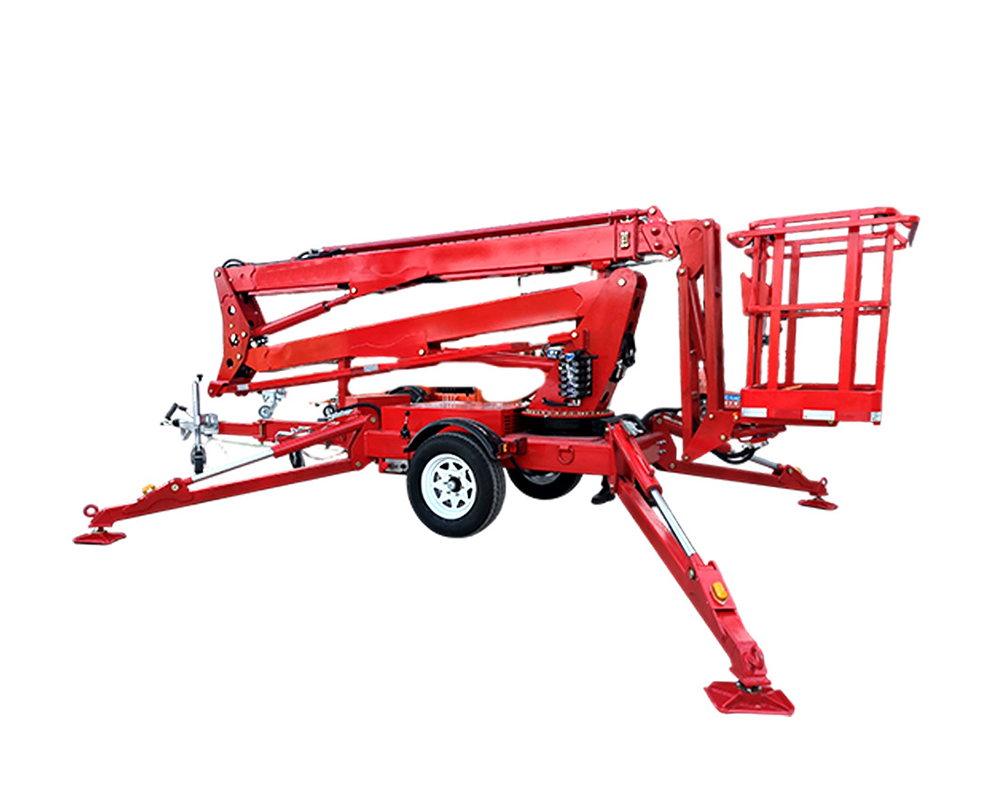

24 m Towable Boom Lift (TBL24)

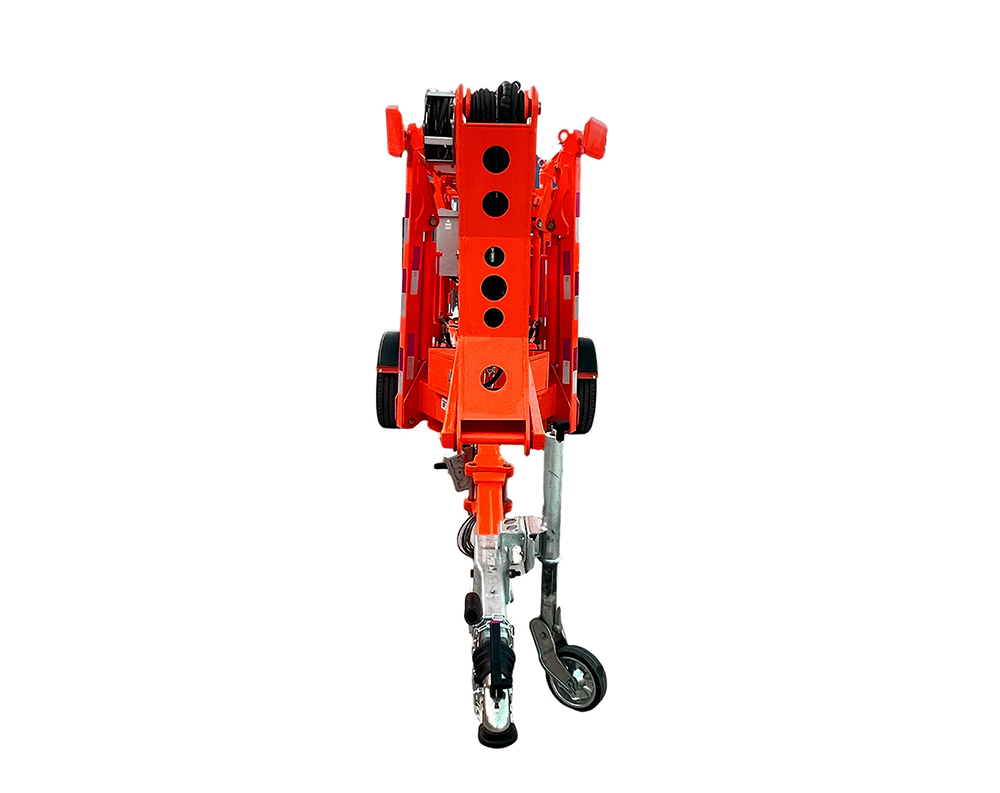

The ZMT TBL24 is the highest-reach model in the ZMT towable boom lift range, providing a 24 m platform height for demanding maintenance, construction, utility and exterior access projects. The trailer-mounted base supports transportation between job sites without requiring a large self-propelled carrier. Power, drive, rotation and control options can be configured according to the destination market and working conditions.
Send us your required lifting capacity or working height, job-site conditions, preferred power source and destination country. ZMT will recommend the suitable configuration and provide a project-specific quotation.
TBL24 Towable Boom Lift Specifications
| Maximum operating height | About 26 m |
| Maximum platform height | 24 m |
| Rated load | 200 kg |
| Working radius | 12 m |
| Rotation range | 359°Discontinuous rotation |

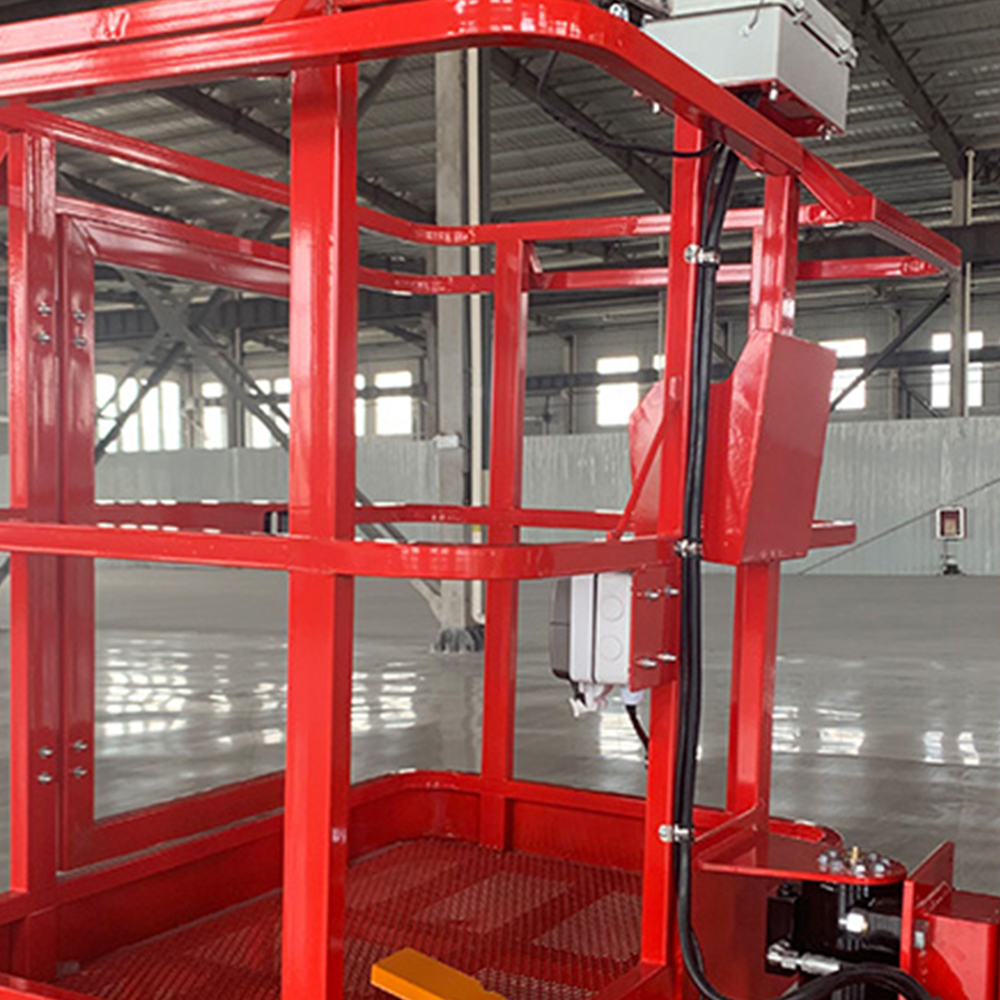

| Bed dimension | 900×700×1100 mm |
| Overall size | 6.9×1.9×2.28 m |
| Number of outstretched arms | 2+1 |

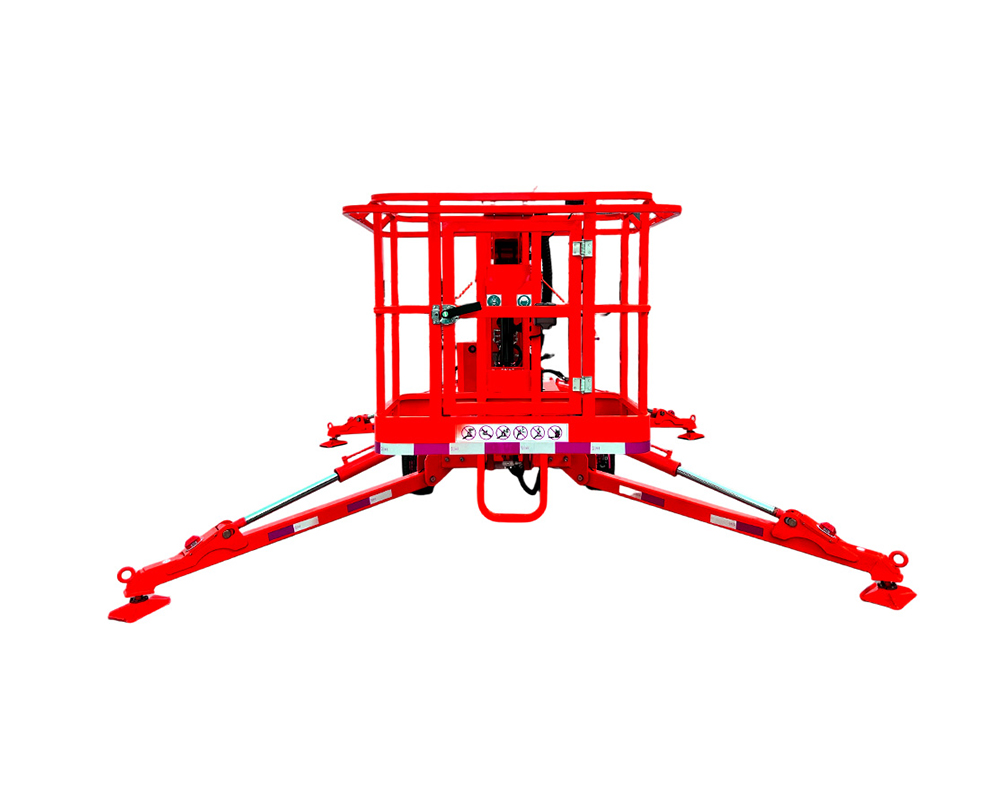

| Leg development area | 6.8×7 m |
| Total weight | 5500 kg |
| Power source | Petrol/diesel/AC Power One out of three |
| Oil cylinder | Japanese NOK seal ring |

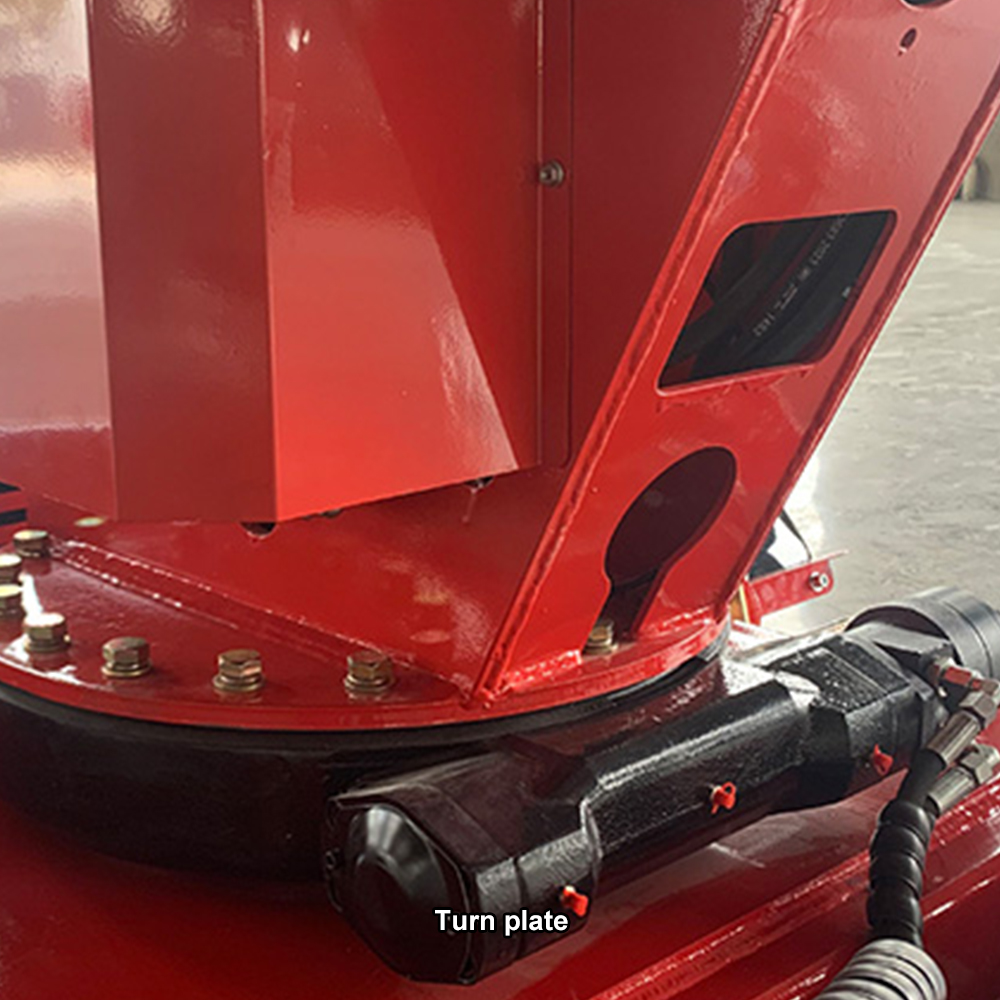

| Rotating support | Fully sealed dust-free rotation |
| Axle | Self-balancing torque shaft |

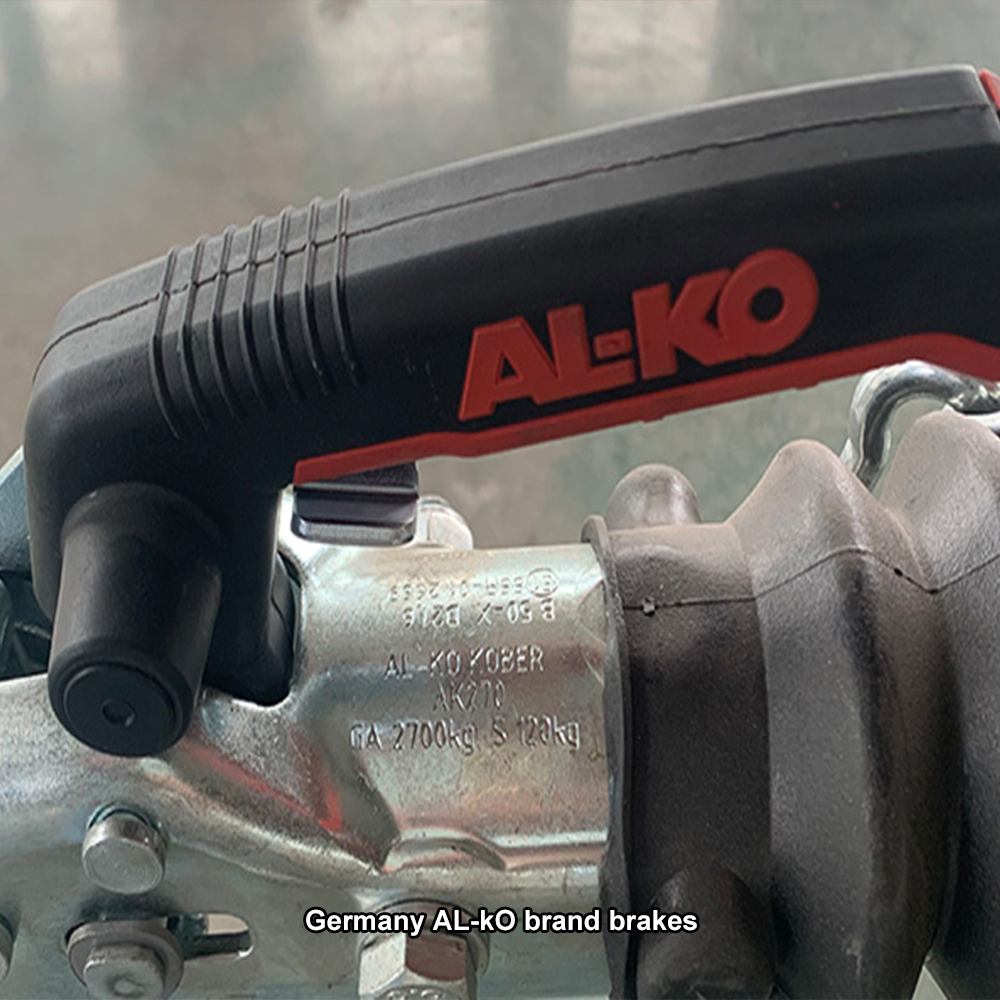

| Inertia drawbar | International standard towing device |

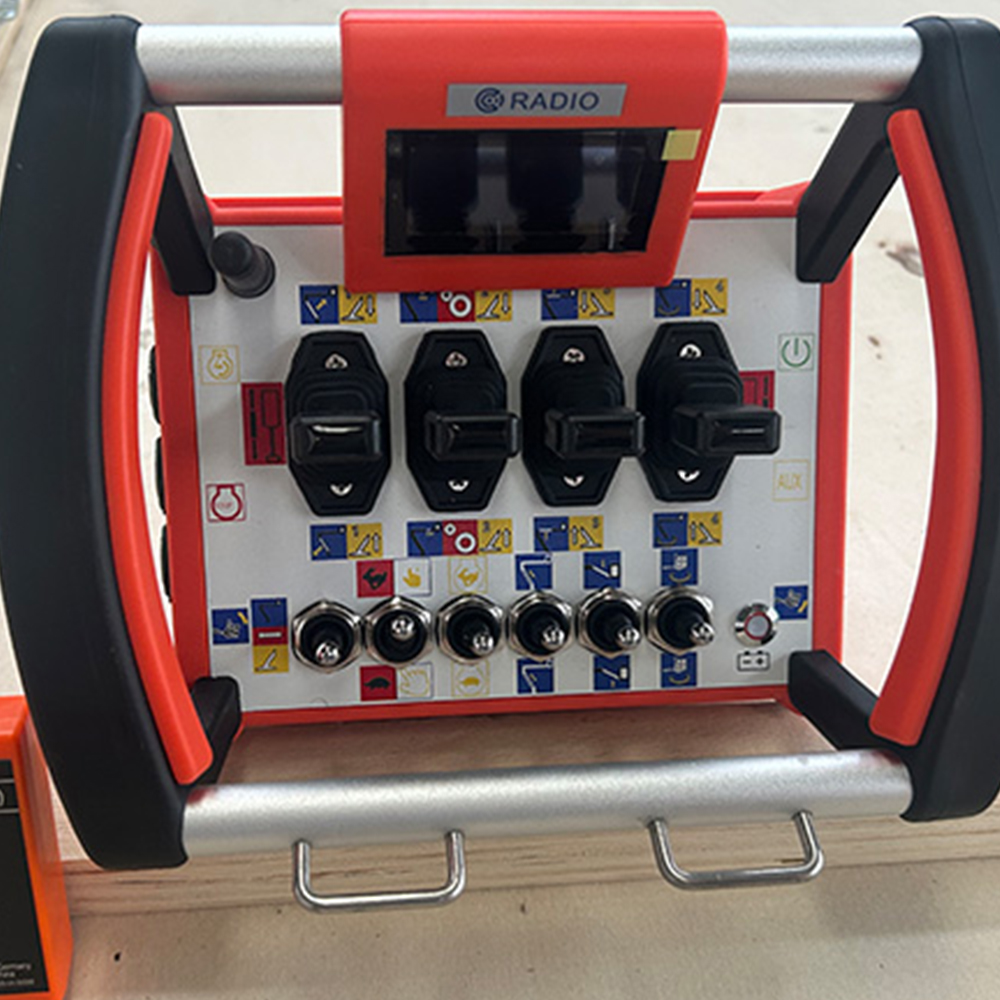

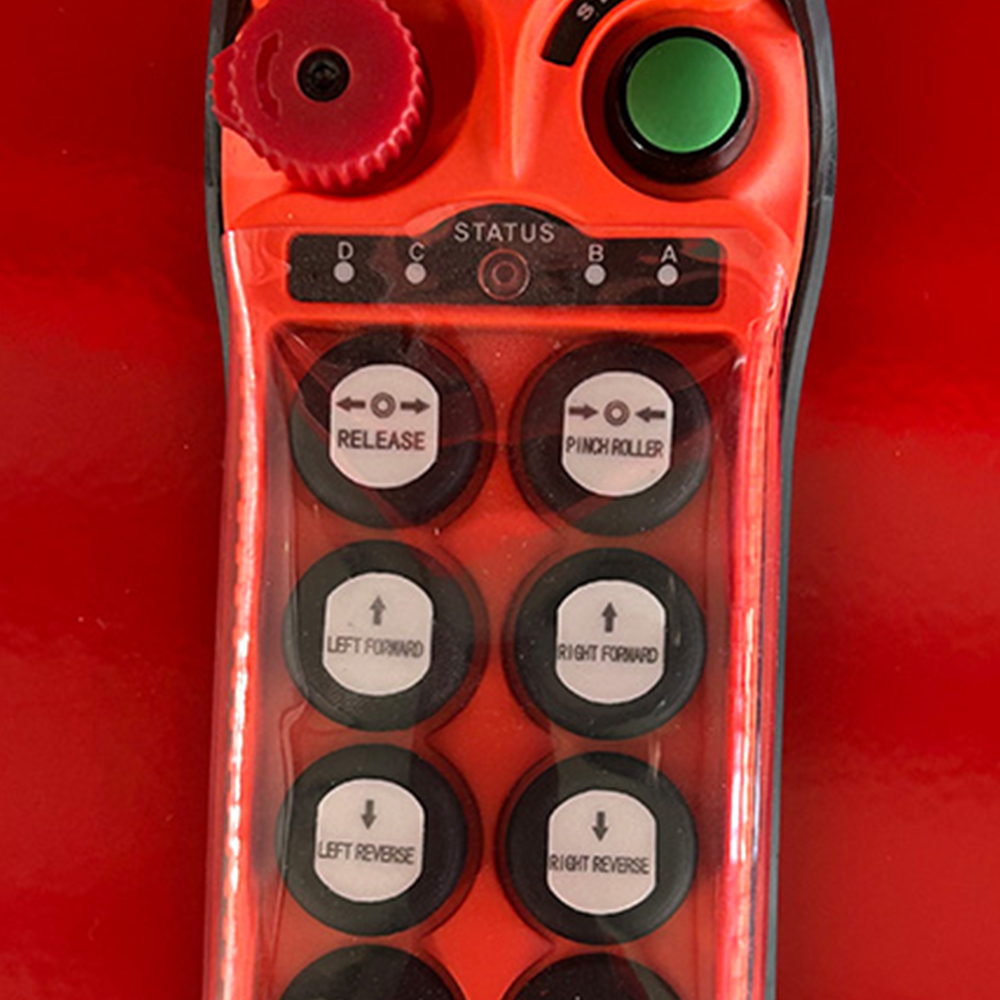

| Control mode | Up and down control |
| Fuel injection pipe | 2SN10-53MPa |

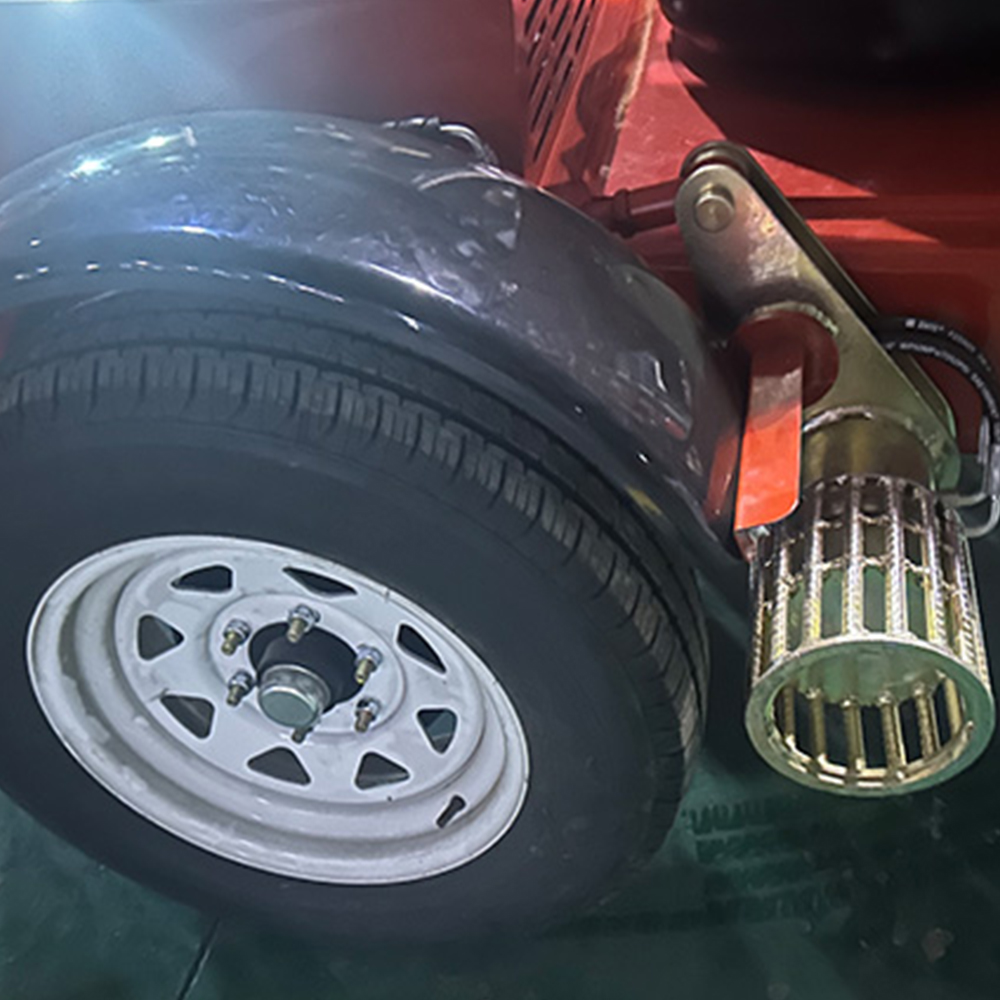

| Tyres | Industrial tyres |
| Overload device | Overload warning |

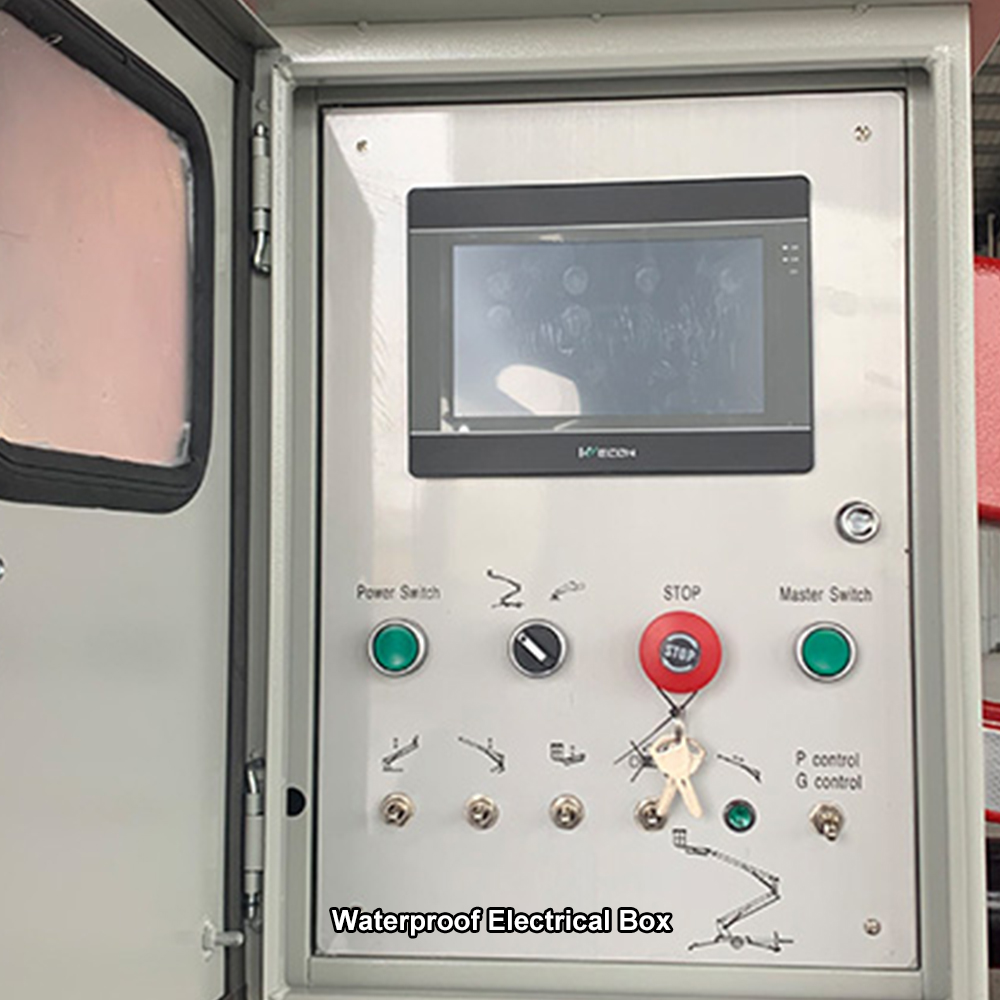

| Onboard diagnostic system | Digital display control |

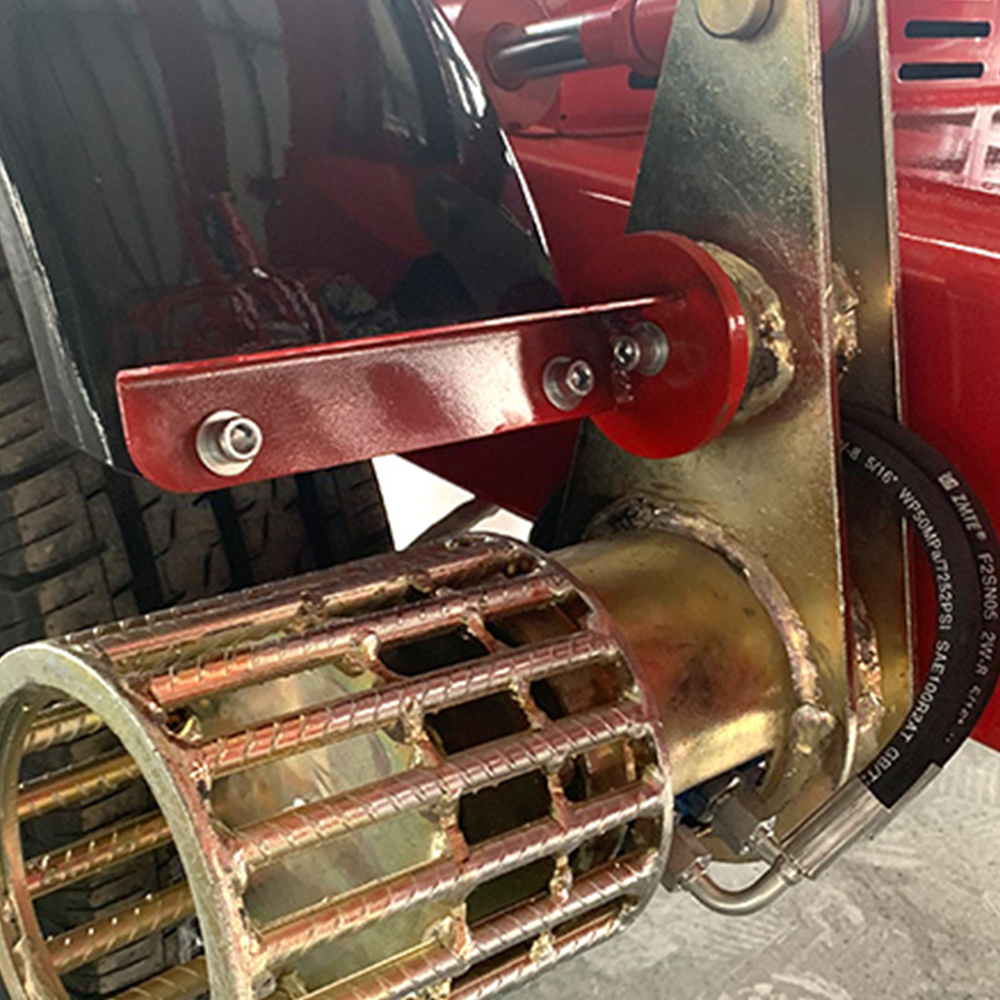

| Options | 360°Continuous rotation/close drive device/dual-power |

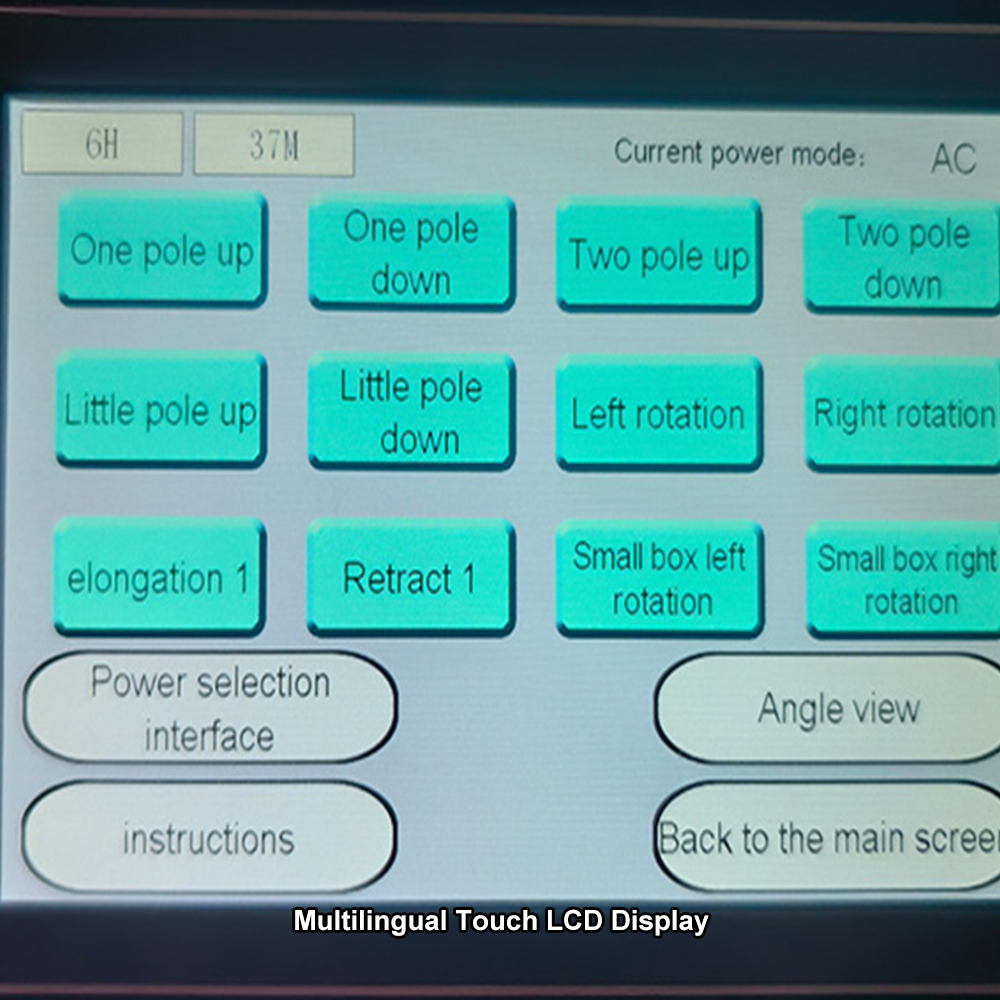

| Features: The machine has overload, over limit, tilt alarm Failure emergency descent system Multilingual touch LCD display control system Emergency stop button with action buzzer in operation Maintenance-free battery, smart charging |
|
| Accessory: Toolbox set, 1 hard hat, 1 Safety belt, Toggle switch 2 / set, Cylinder seal ring 1 set/set, Instruction manual |
|
