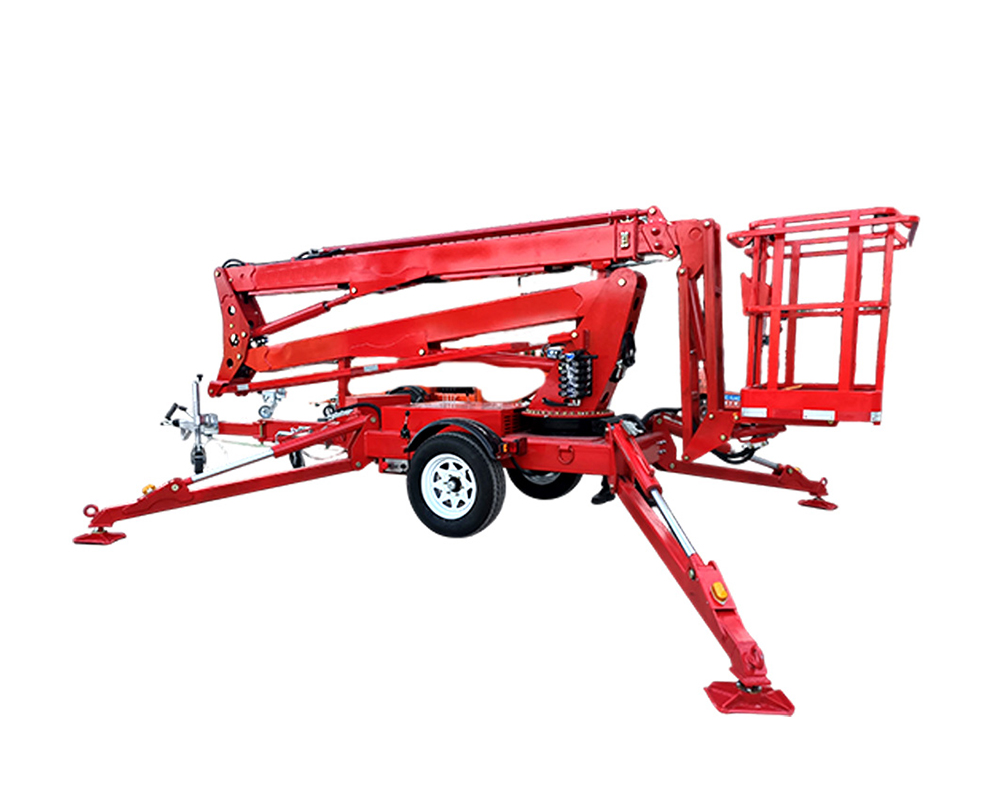

22 m Towable Boom Lift (TBL22)
The ZMT TBL22 is a 22 m towable boom lift for tall building maintenance, signage installation, utility work, tree care and construction access. It is intended for buyers who need greater working height while retaining the transport flexibility of a trailer-mounted platform. ZMT can recommend the appropriate power source, rotation system, assisted-drive option and safety configuration for the intended job site.
Send us your required lifting capacity or working height, job-site conditions, preferred power source and destination country. ZMT will recommend the suitable configuration and provide a project-specific quotation.
TBL22 Towable Boom Lift Specifications
| Maximum operating height | About 24 m |
| Maximum platform height | 22 m |
| Rated load | 200 kg |
| Working radius | 11.5 m |
| Rotation range | 360°continuous rotation |
| Bed dimension | 900×700×1100 mm |
| Overall size | 6.9×1.9×2.25 m |
| Number of outstretched arms | 2+1 |
| Leg development area | 6.5×6.8 m |
| Total weight | 4200 kg |
| Power source | Petrol/diesel/AC Power One out of three |
| Oil cylinder | Japanese NOK seal ring |
| Rotating support | Fully sealed dust-free rotation |
| Axle | Self-balancing torque shaft |
| Inertia drawbar | International standard towing device |
| Control mode | Up and down control |
| Fuel injection pipe | 2SN10-53MPa |
| Tyres | Industrial tyres |
| Overload device | Overload warning |
| Onboard diagnostic system | Digital display control |
| Options | 360° Continuous rotation/close drive device/dual-power |
| Features: The machine has overload, over limit, tilt alarm Failure emergency descent system Multilingual touch LCD display control system Emergency stop button with action buzzer in operation Maintenance-free battery, smart charging |
|
| Accessory: Toolbox set, 1 hard hat, 1 Safety belt, Toggle switch 2 / set, Cylinder seal ring 1 set/set, Instruction manual |
|
