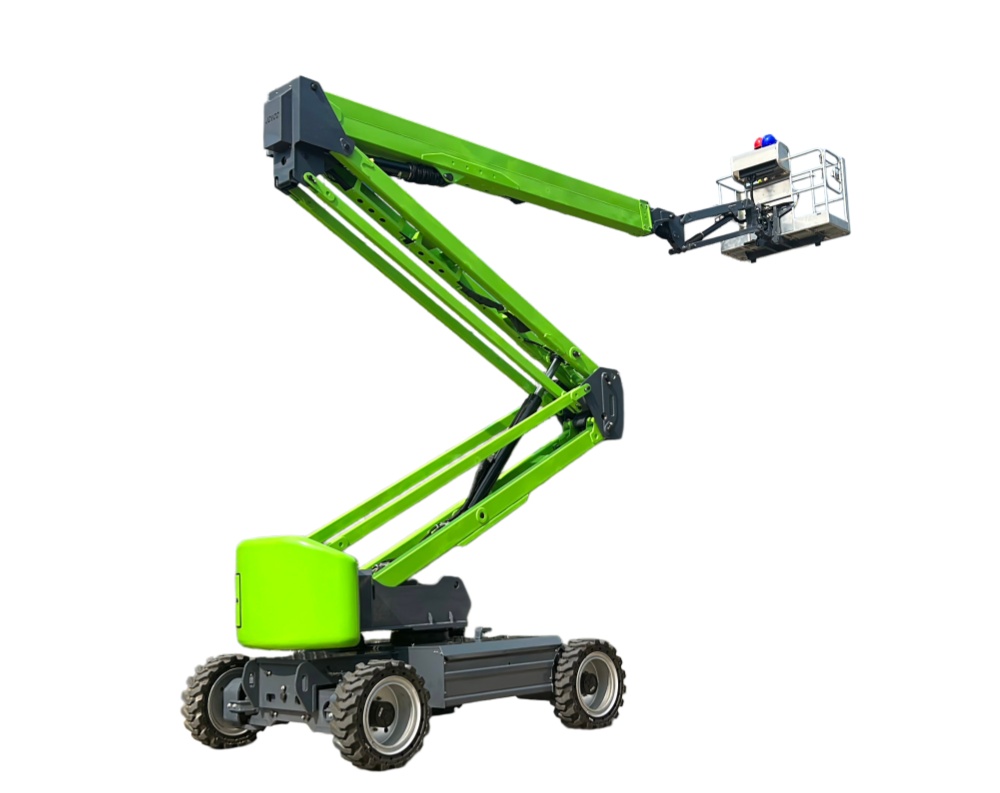

20 m Self-propelled lift (SPL20)
The SPL20 is a 20m self-propelled boom lift for high-rise construction, structural installation, plant maintenance and outdoor industrial work. As the longest-reach model in the SPL12-SPL20 range, it supports demanding projects that require efficient access at greater heights.
- 20m working-height class for high-access construction and maintenance

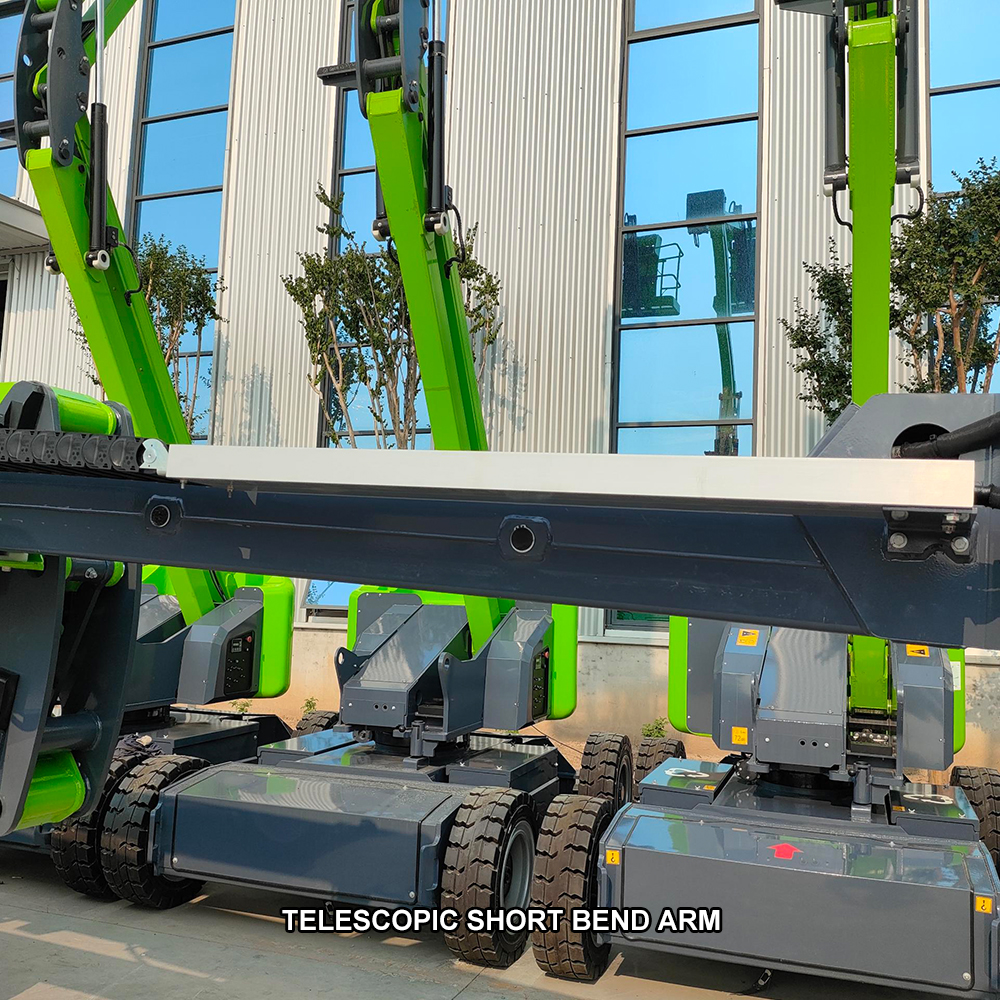

- Long telescopic reach with self-propelled job-site mobility

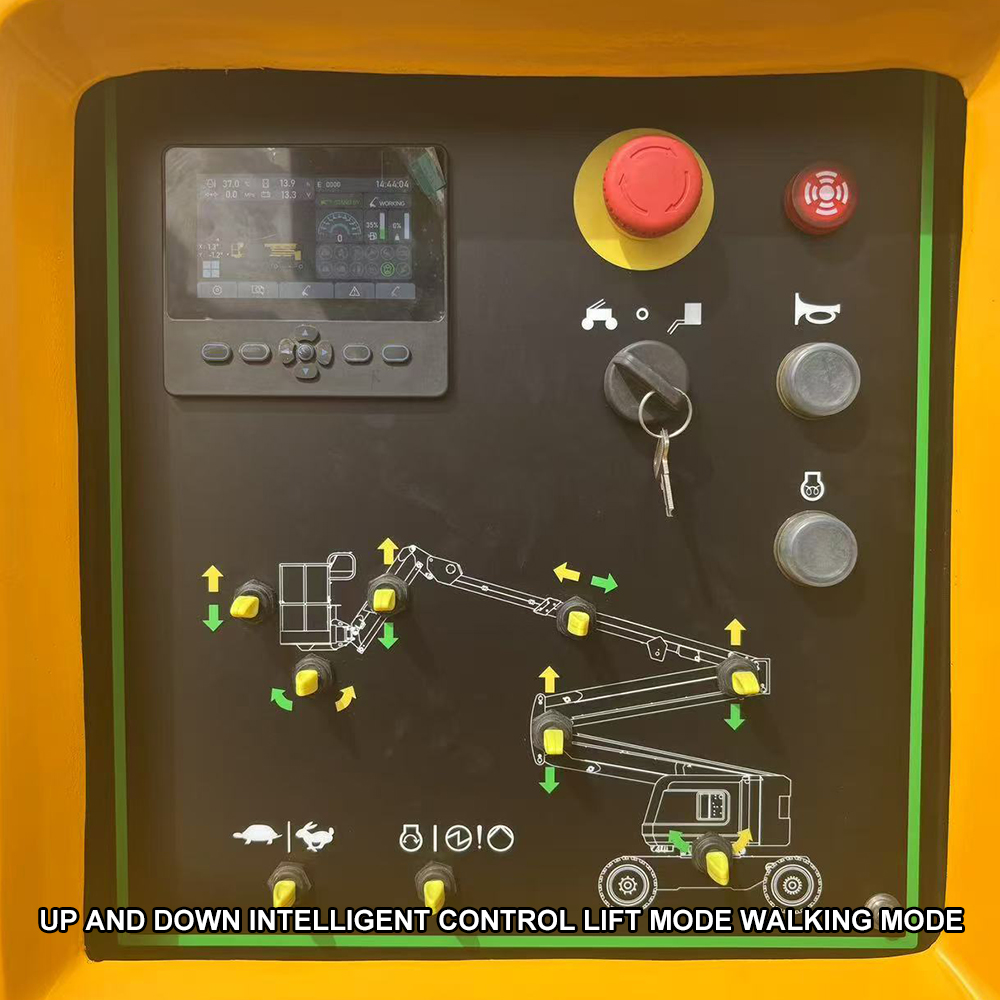

- Operator safety systems including emergency stop and overload protection
- OEM/ODM configurations, export documentation and global delivery
Compare the SPL12-SPL20 boom lift range or request an SPL20 quotation and delivery plan.
SPL20 Self-Propelled Boom Lift Specifications
| Model Type | V20 |
|---|---|
| Max. Working height | 22.5 m |
| Max. Platform height | 20.5 m |
| Max. up and over clearance | 9.4 m |
| Max. Working radius | 11.8 m |
| Platform width | 0.76 m |
| Platform length | 1.8 m |
| Height - stowed | 2.38 m |
| Length - stowed | 8.98 m |
| Width | 2.49 m |
| Wheelbase | 2.5 m |
| Ground clearance - center | 0.3 m |
| Max. Lift capacity | 230 kg / 350 kg |
| Number of platform occupants | 2/3 |
| Platform rotation | ±80° |

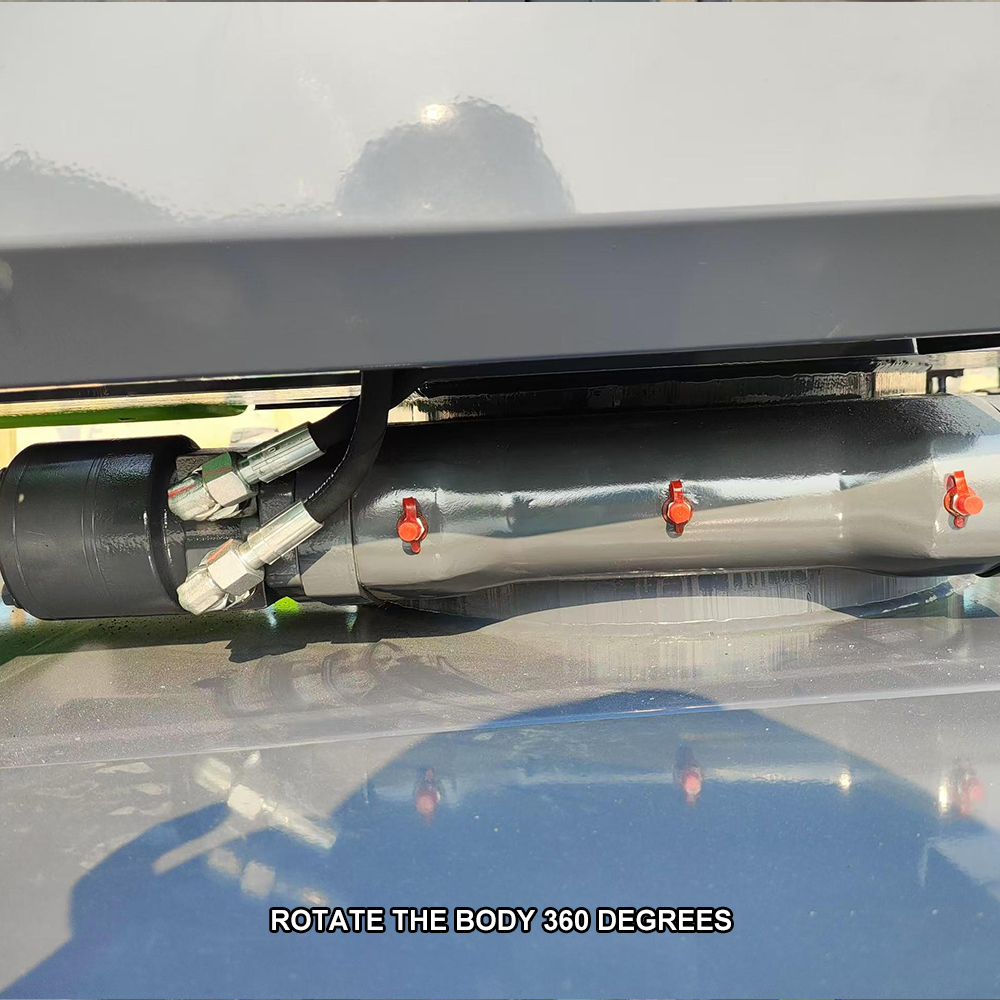

| Turntable rotation | 360° Continuous Rotation |
| Vertical jib rotation (up/down) | ±70° |
| Drive speed - stowed | 4.5 km/h |
| Gradability - stowed | 40% |
| Max. Working angle (Tilt sensor activation) | 3° |
| Turning radius (outside) | 5.0 m |
| Drive and steer | 4×2 |
| Weight | 10200 kg |
| Battery | 48 V/420 Ah |
| Control voltage | 24 V |
| Pump motor | 12 kw |
| Drive motor | 3.3 kw |
