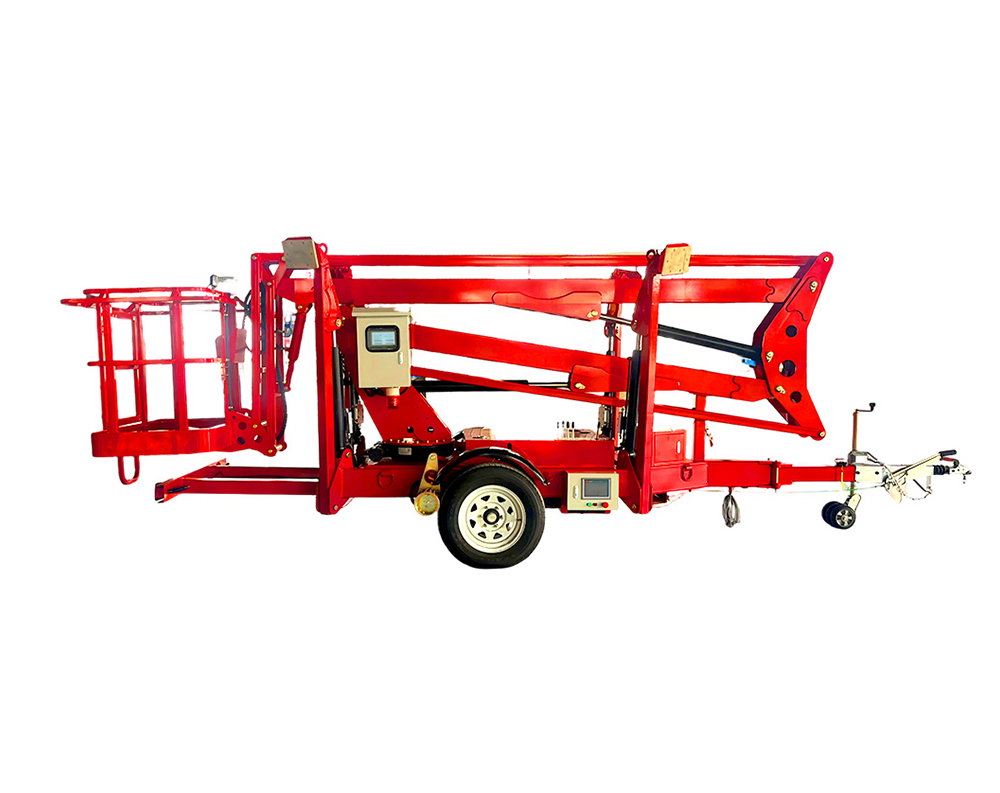

12 m Towable Boom Lift (TBL12)
The ZMT TBL12 is a compact trailer-mounted boom lift designed for facility maintenance, signage installation, electrical work and light construction projects. Its 12 m platform height suits jobs that require flexible access without transporting a full-size self-propelled lift. The towable chassis makes movement between work sites more convenient, while multiple power and optional drive configurations are available for different operating conditions.
Send us your required lifting capacity or working height, job-site conditions, preferred power source and destination country. ZMT will recommend the suitable configuration and provide a project-specific quotation.
TBL12 Towable Boom Lift Specifications
| Maximum operating height | About 14 m |
| Maximum platform height | 12 m |
| Rated load | 250 kg |

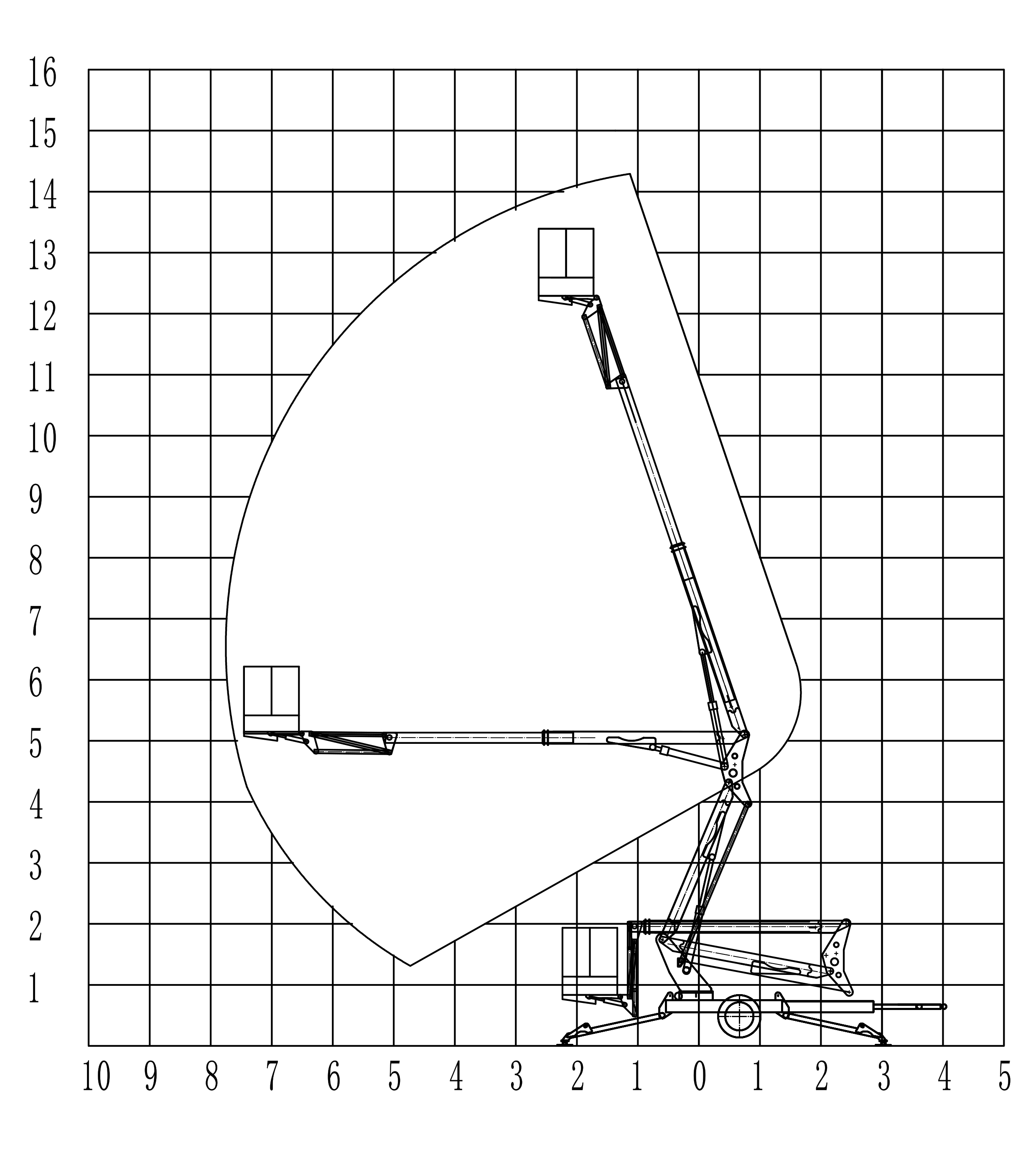

| Working radius | 6.5 m |
| Rotation Range | 359°Discontinuous rotation |
| Bed dimension | 900×700×1100 mm |
| Overall size | 6.2×1.7×2.2 m |
| Number of outstretched arms | 2+1 |

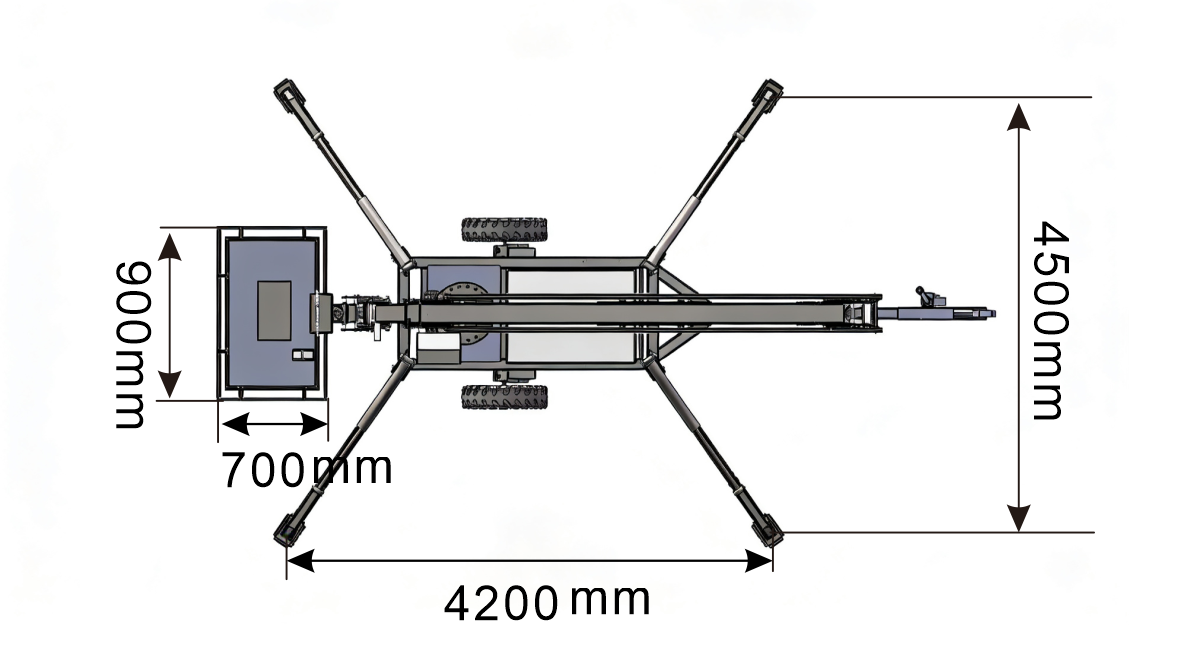

| Leg development area | 4.2×4.5 m |
| Total weight | 1900 kg |
| Power source | Petrol/diesel/AC Power One out of three |
| Oil cylinder | Japanese NOK seal ring |
| Rotating support | Fully sealed dust-free rotation |
| Axle | Self-balancing torque shaft |
| Inertia drawbar | International standard towing device |
| Control mode | Up and down control |
| Fuel injection pipe | 2SN10-53MPA |
| Tyres | Industrial tyres |
| Overload device | Overload warning |
| Onboard diagnostic system | Digital display control |
| Options | 360°continuous rotation/close drive device/dual-power |
| Features: The machine has overload, over limit, tilt alarm Failure emergency descent system Multilingual touch LCD display control system Emergency stop button with buzzer in operation Maintenance-free battery, smart charging |
|
| Accessory: Toolbox set, 1 hard hat, 1 Safety belt, Toggle switch 2 / set, Cylinder seal ring 1 set/set, Instruction manual |
|
