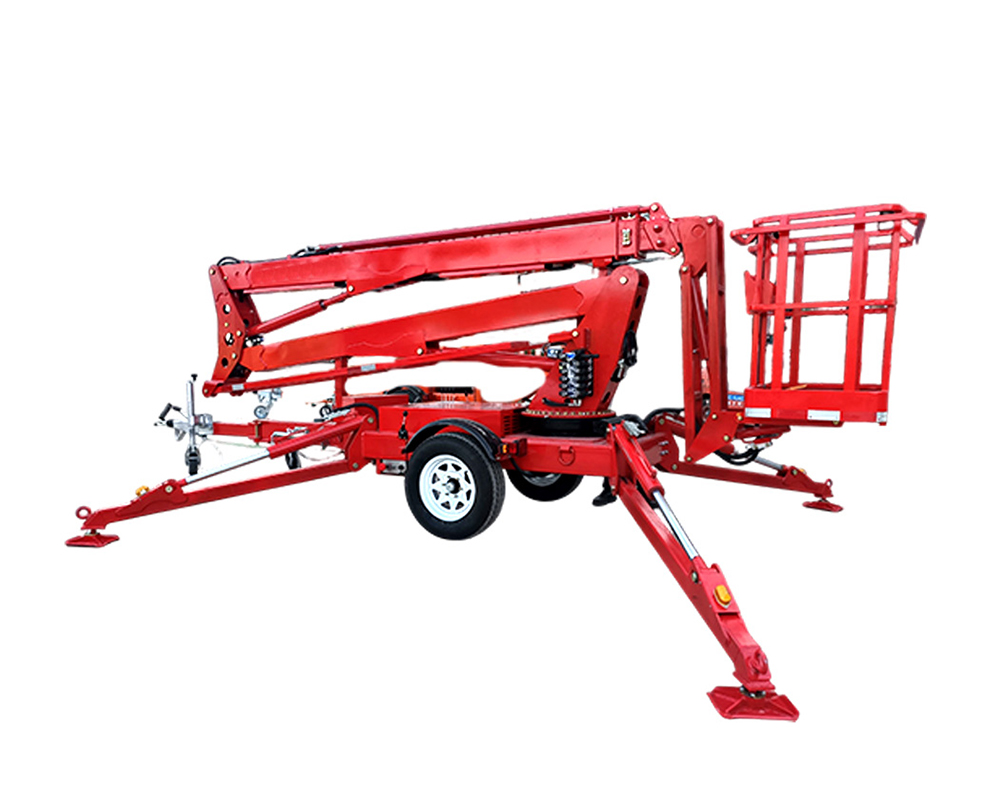

16 m Towable Boom Lift (TBL16)
The ZMT TBL16 is a trailer-mounted towable boom lift for building maintenance, electrical installation, tree care, signage and construction work. Its 16 m platform height provides additional reach for medium-height outdoor projects while the towable base supports convenient transport between job sites. Petrol, diesel, AC electric and dual-power configurations can be selected according to the working environment and local requirements.
Send us your required lifting capacity or working height, job-site conditions, preferred power source and destination country. ZMT will recommend the suitable configuration and provide a project-specific quotation.
TBL16 Towable Boom Lift Specifications
| Maximum operating height | About 18 m |
| Maximum platform height | 16 m |
| Rated load | 200 kg |
| Working radius | 10.5 m |
| Rotation range | 359°Discontinuous rotation |
| Bed dimension | 900×700×1100 mm |

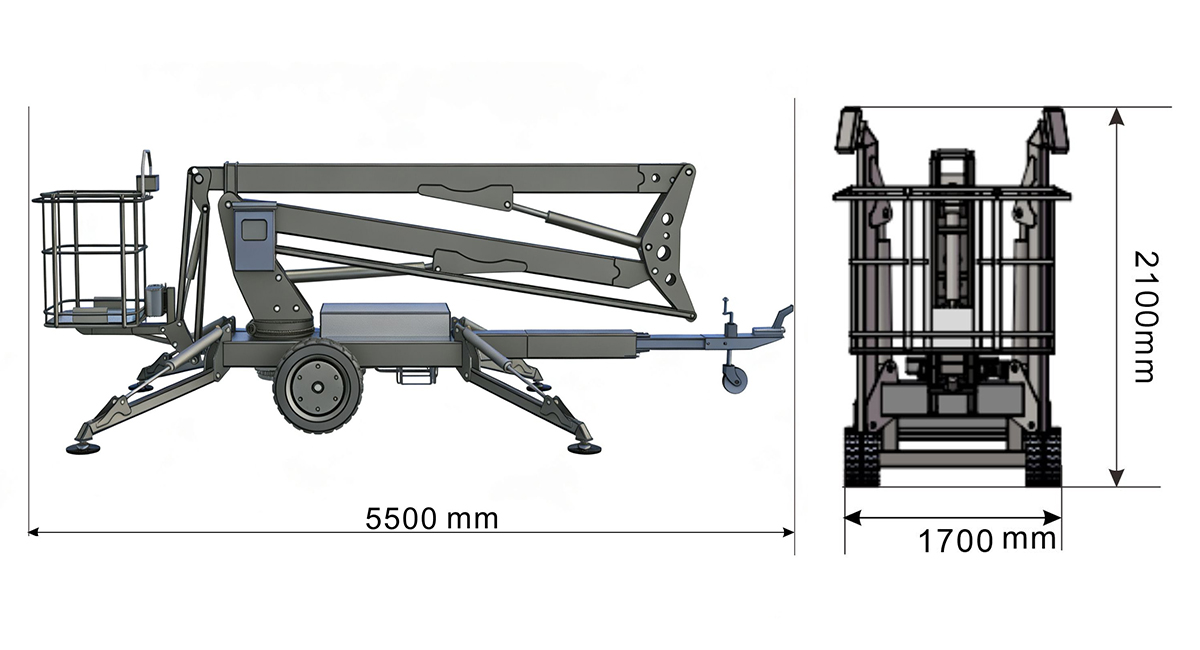

| Overall size | 5.7×1.7×2.2 m |
| Number of outstretched arms | 2+1 |

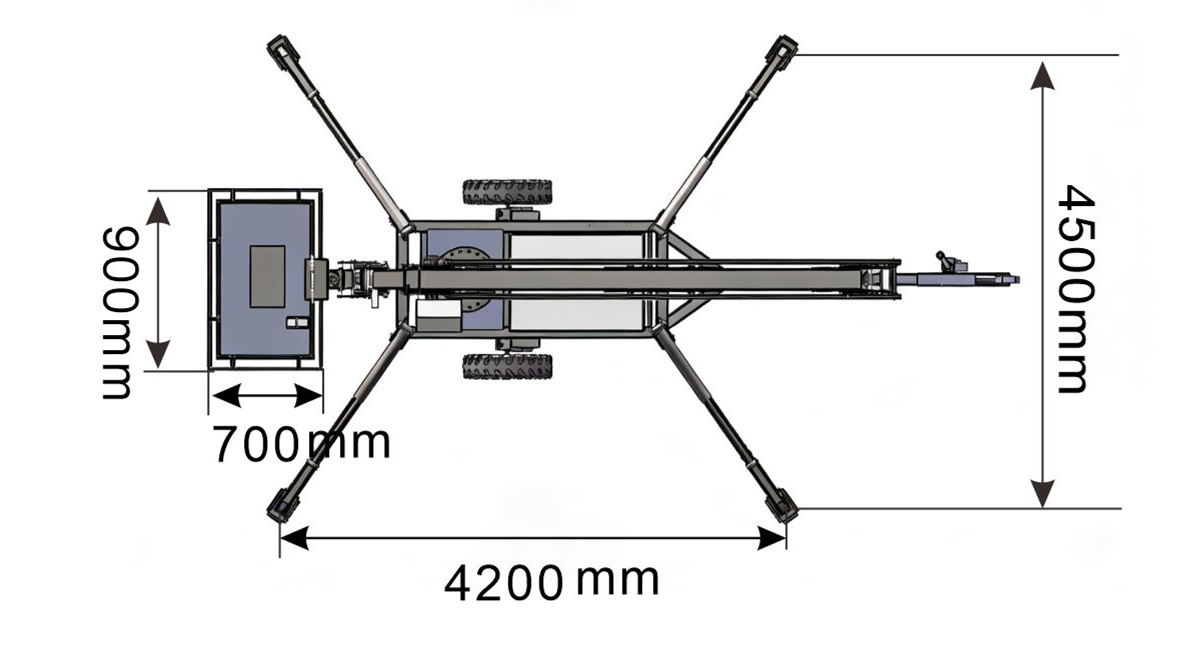

| Leg development area | 4.2×4.5 m |
| Total weight | 2600 kg |
| Power source | Petrol/diesel/AC Power One out of three |
| Oil cylinder | Japanese NOK seal ring |
| Rotating support | Fully sealed dust-free rotation |
| Axle | Self-balancing torque shaft |
| Inertia drawbar | International standard towing device |
| Control mode | Up and down control |
| Fuel injection pipe | 2SN10-53MPa |
| Tyres | Industrial tyres |
| Overload device | Overload warning |
| Onboard diagnostic system | Digital display control |
| Options | 360°continuous rotation/close drive device/dual-power |
| Features: The machine has overload, over limit, tilt alarm Failure emergency descent system Multilingual touch LCD display control system Emergency stop button with action buzzer in operation Maintenance-free battery, smart charging |
|
| Accessory: Toolbox set. 1 hard hat, 1 Safety belt, Toggle switch 2 / set, Cylinder seal ring 1 set/set, Instruction manual |
|
