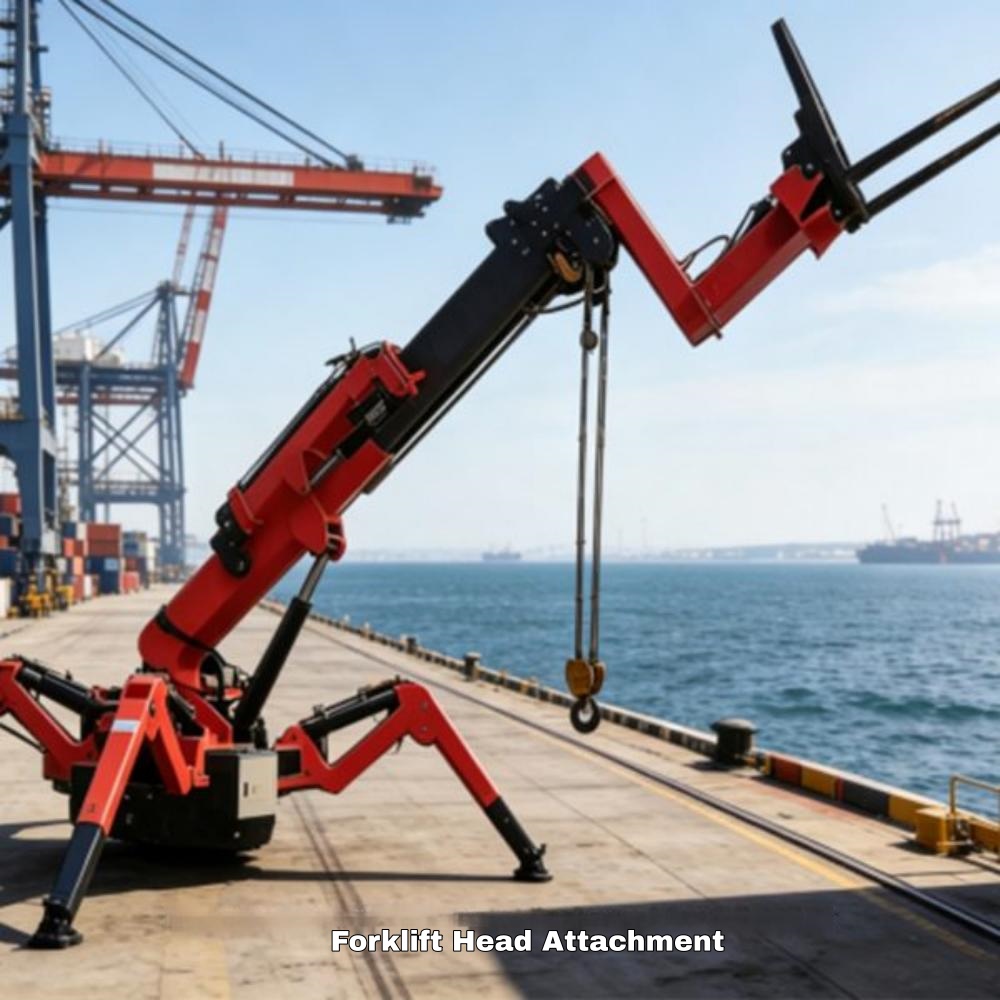

5 Ton Spider Crane（ZMC50）

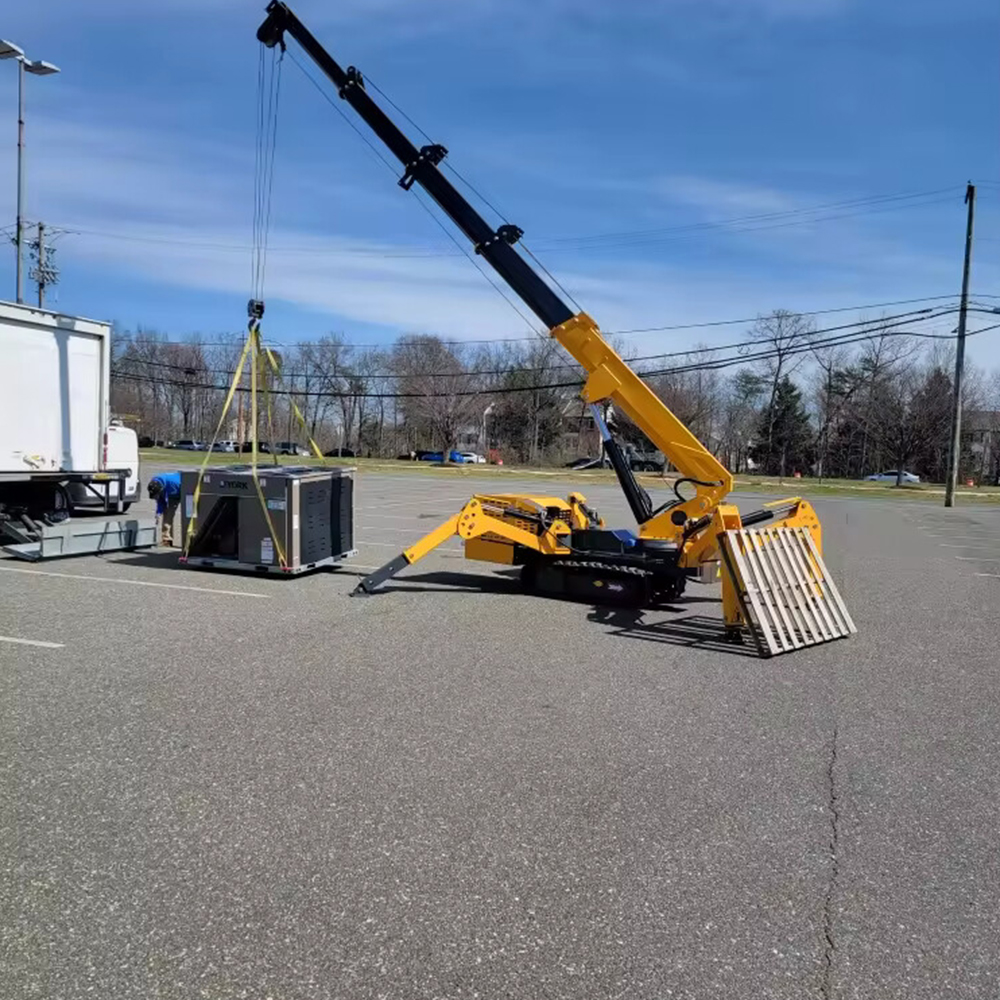

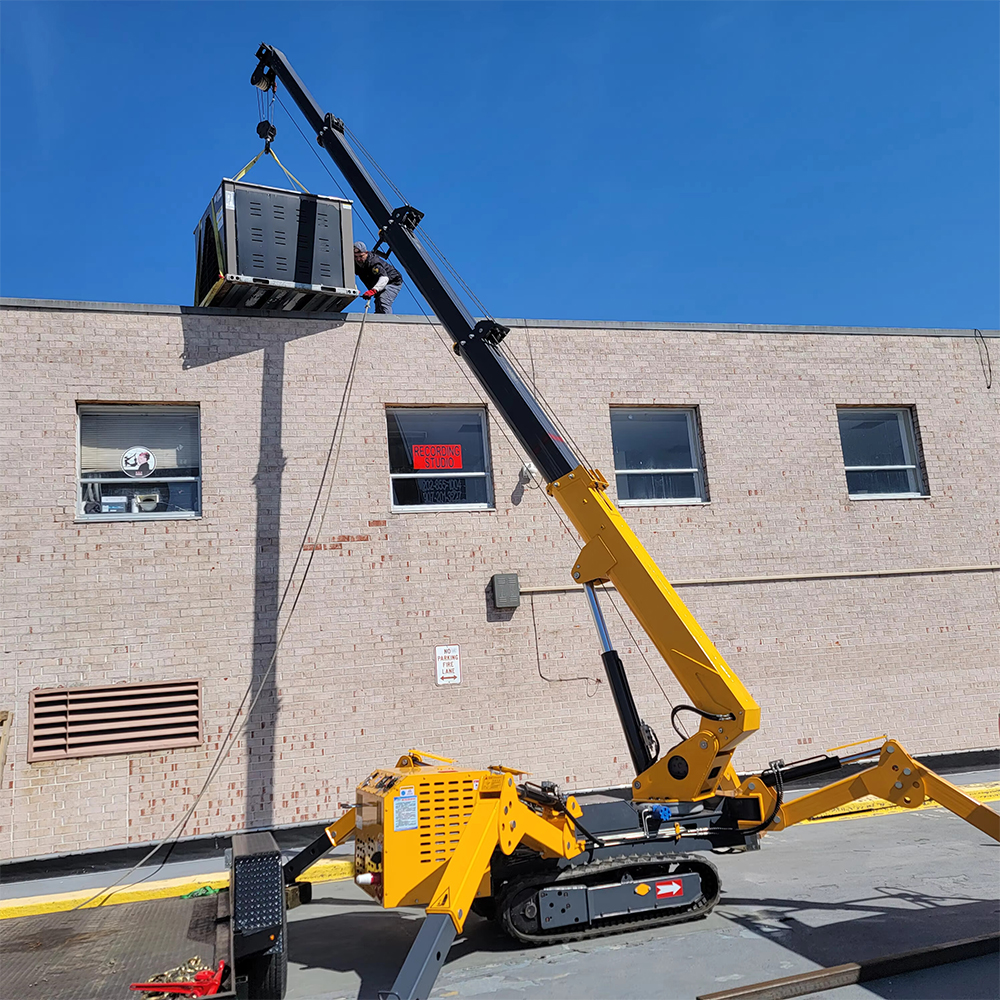

The ZMT ZMC50 is a 5 ton crawler spider crane designed for machinery installation, steel structure assembly, precast component handling and other confined-site lifting work. The compact crawler chassis helps the crane approach areas that are difficult for conventional mobile cranes, while the hydraulic boom and outrigger system supports stable setup. Power, control and safety configurations can be customized for indoor or outdoor projects.
Send us your required lifting capacity or working height, job-site conditions, preferred power source and destination country. ZMT will recommend the suitable configuration and provide a project-specific quotation.
ZMC50 Spider Crane Specifications

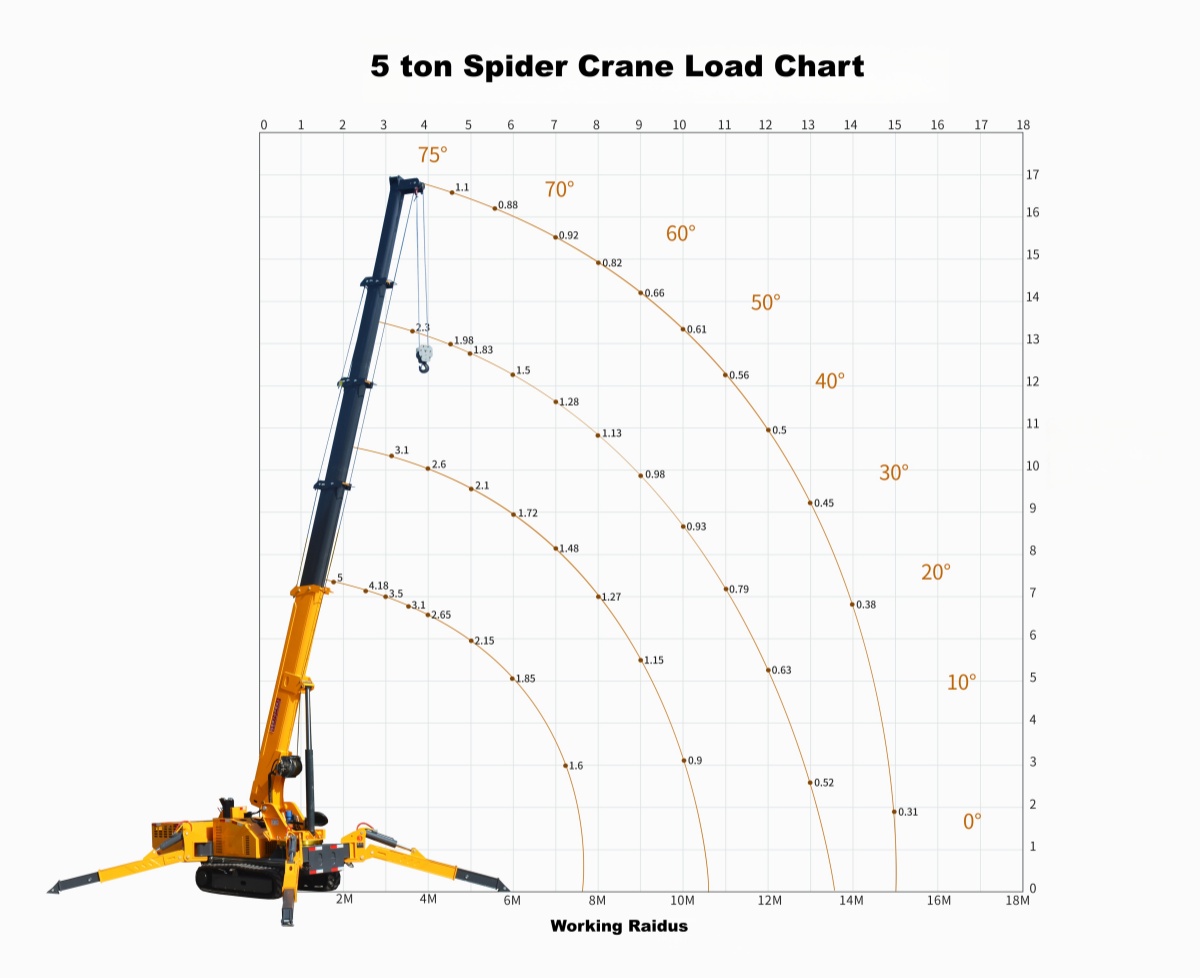

| Working radius | 14.8m | |
| Maximum ground lift | 15.6m | |
| Maximum underground lift | 6.5m | |
| Hook speed | 0-11m/min(4ropes) | |
| Wire rope diameter and length | φ12mm×70m (max) | |
| Boom form and length | 5m×5-section lifting arm （Support customization） | |
| Boom expansion time | 40 sec | |
| Boom angle/time | 0~78°/46sec | |

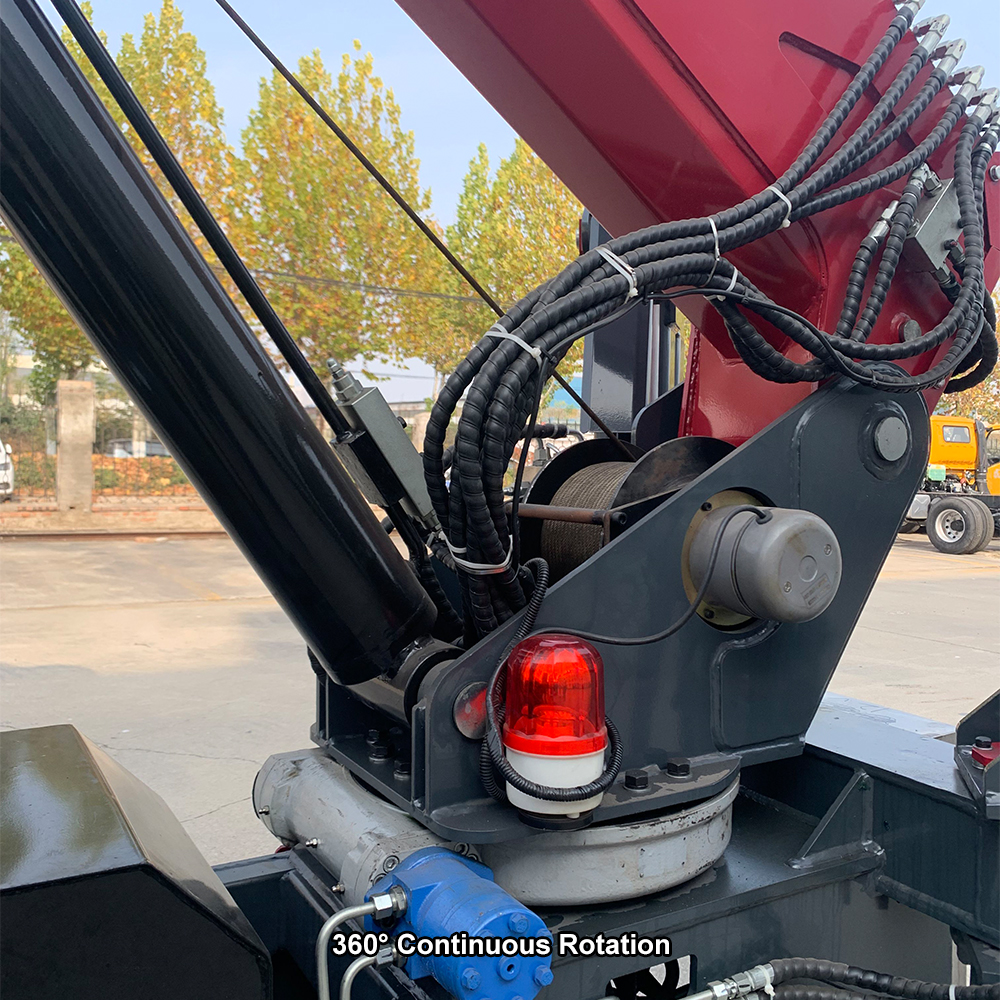

| Slew angle/ speed | 0-360° Continuous /120sec | |
| Outrigger active form | Manual rotation, oil pressure automatic support | |
| Maximum extended dimensions | 5600mm (side) x 5560mm (front) x 5000mm (back) | |
| Walking way | Hydraulic motor drive | |
| Walking speed | 0~0.8km/ h | |
| Grade ability | 20° | |

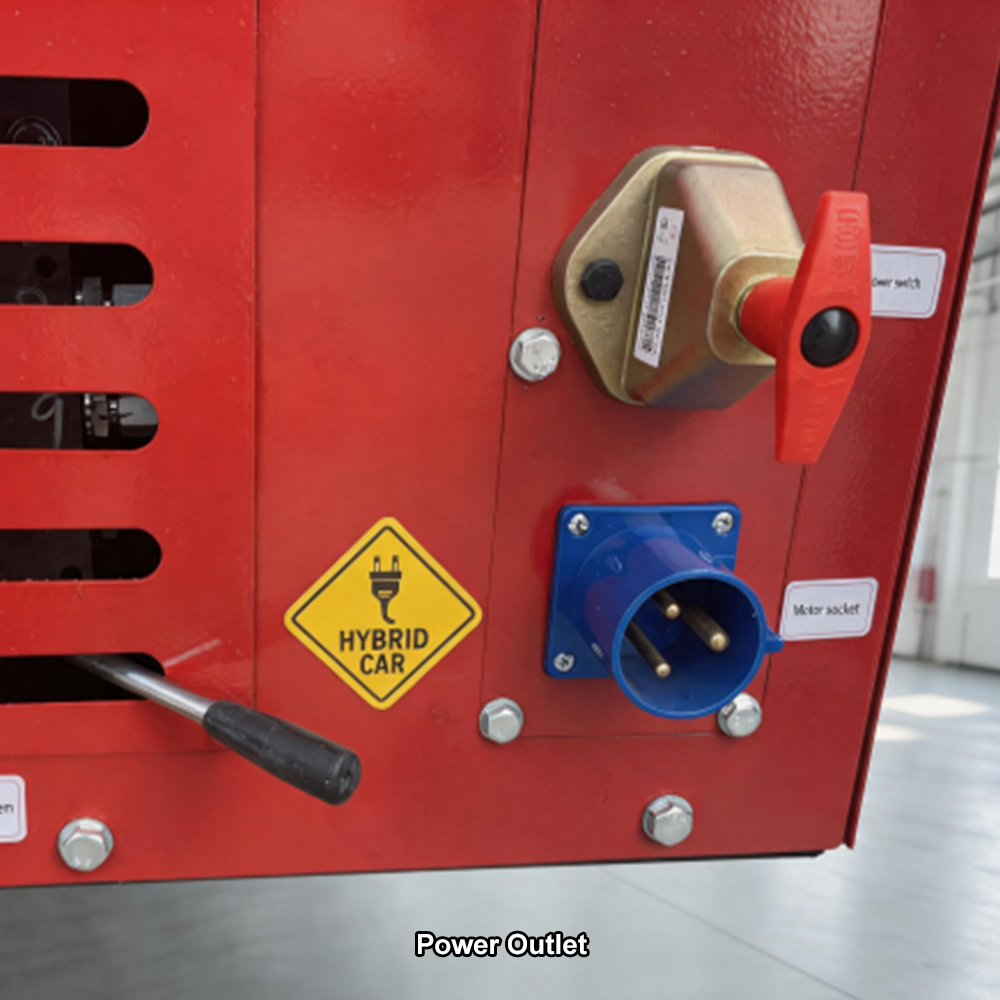

| Power system | Voltage | AC380V/50hz（Support customization） |

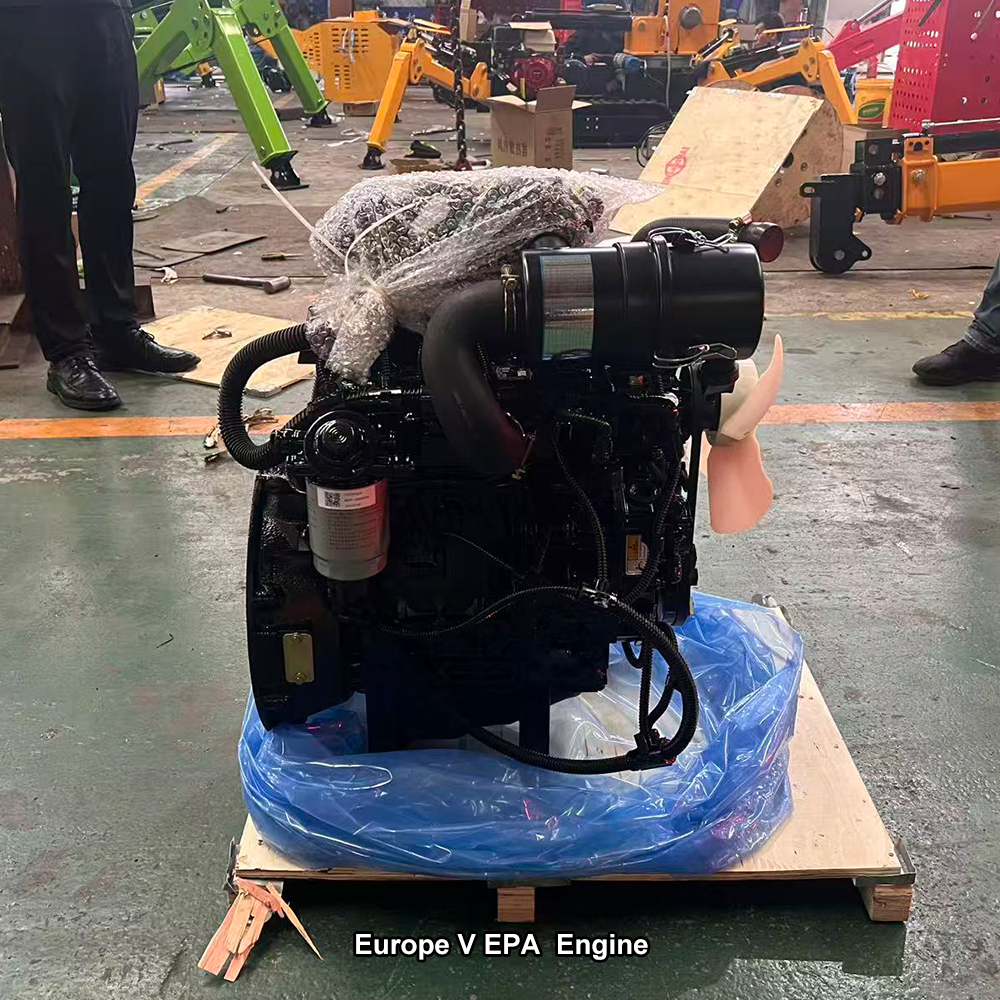

| Manufacturer | Yunnei（Support customization） | |
| Displacement | 2.5L | |
| Start method | Electric start | |
| Start performance | ﹣5℃-40℃ | |
| Fuel/Volume | Diesel /45L | |
| Rated output power | 37kw | |
| Noise level | Rated speed ≤ 81.5dBA (1m) | |

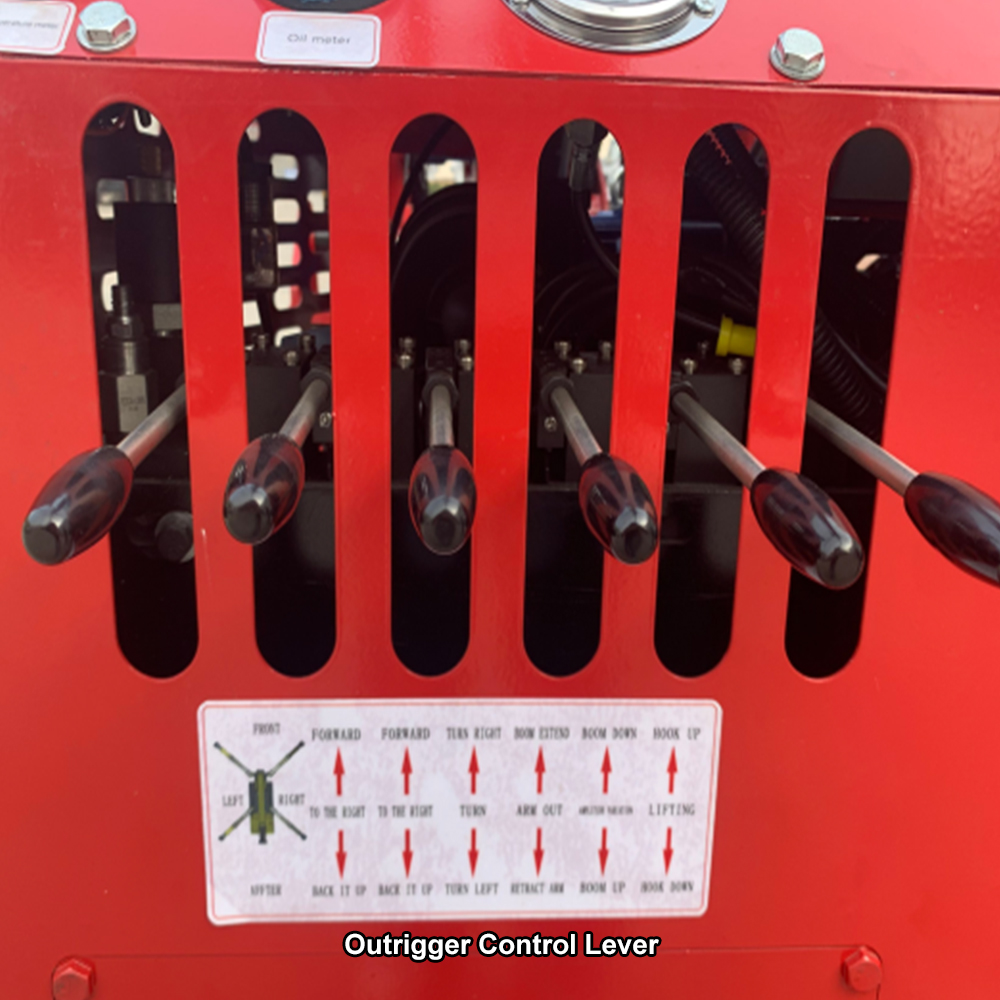

| Operation Outrigger | Manual | |

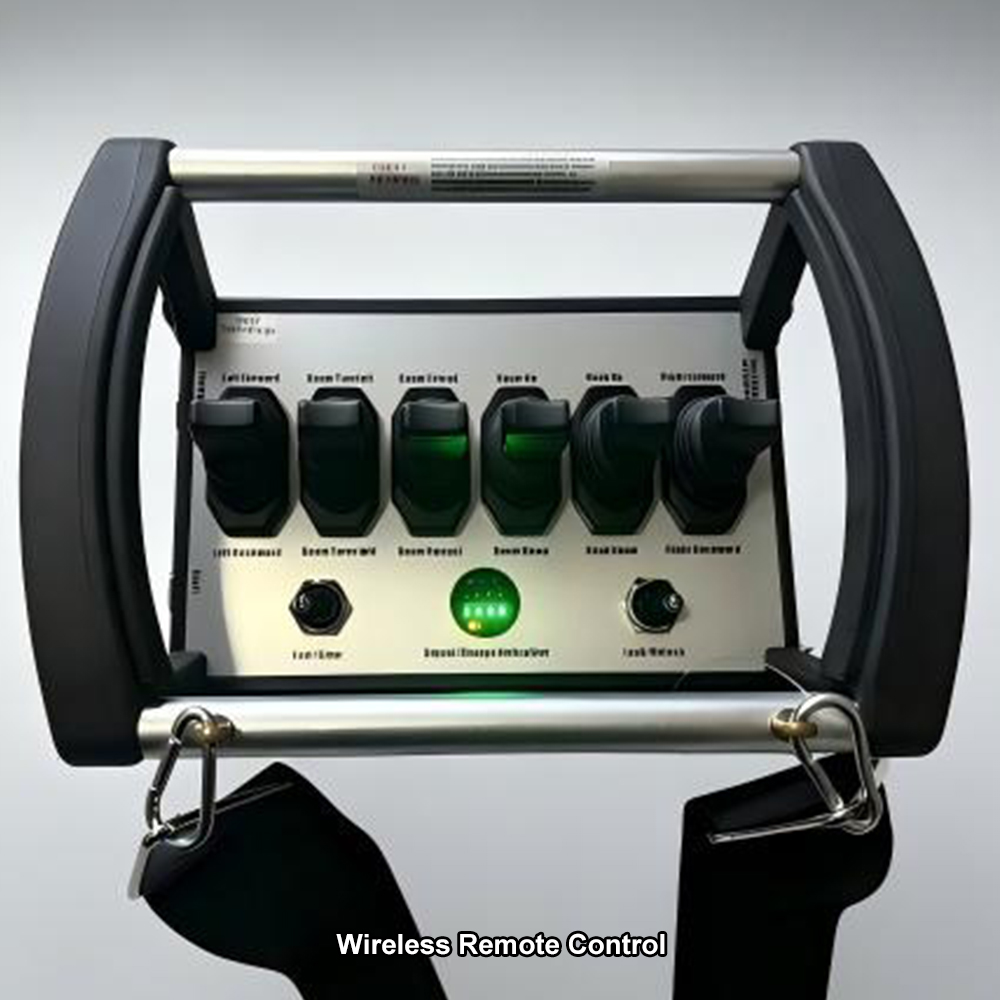

| Booms and walk | Manual/Remote | |

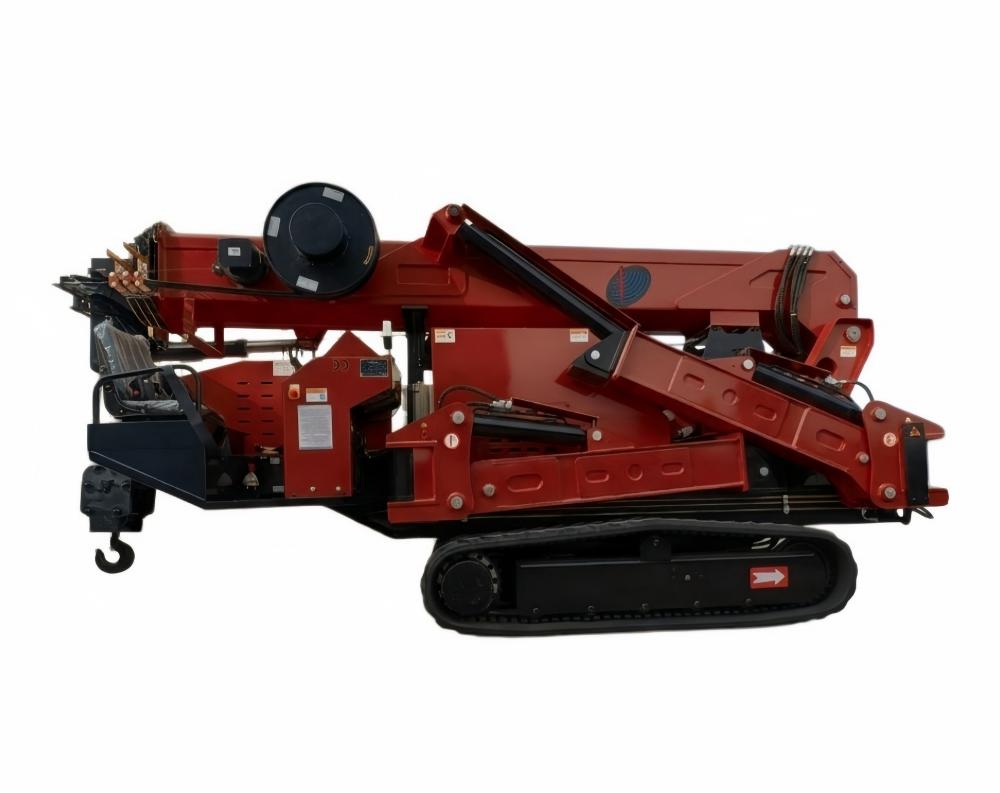

| Dimension | 4650*1400*2160mm | |
| Vehicle weight | 6300kg | |

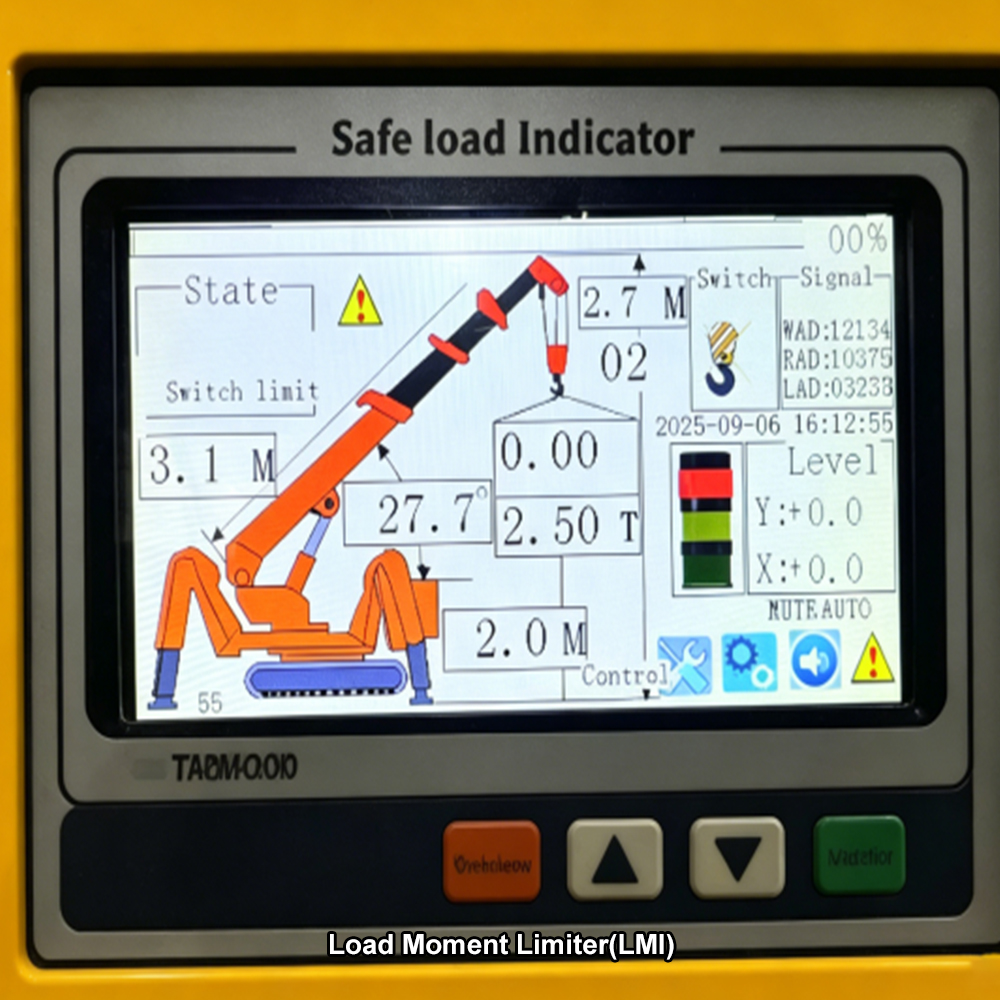

| Optional | Remote control/level/moment limiter/ three-color light/emergency stop button/ walking, leg, arm interlock/anti-tilt flip device/one key leveling. | |
