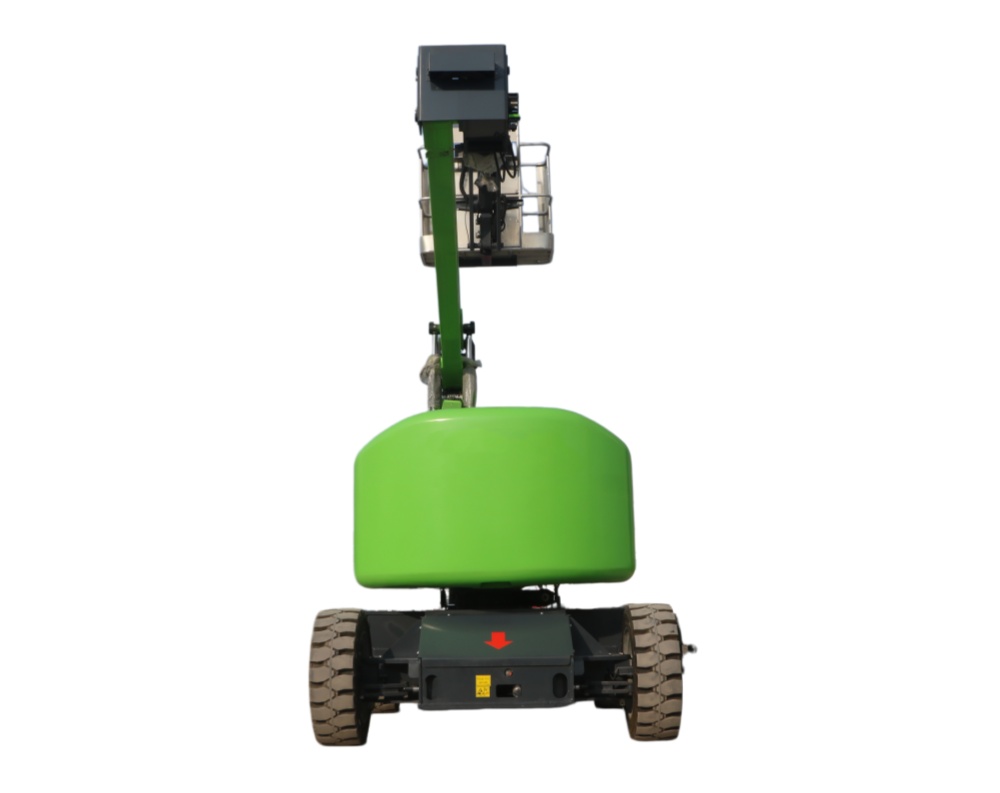

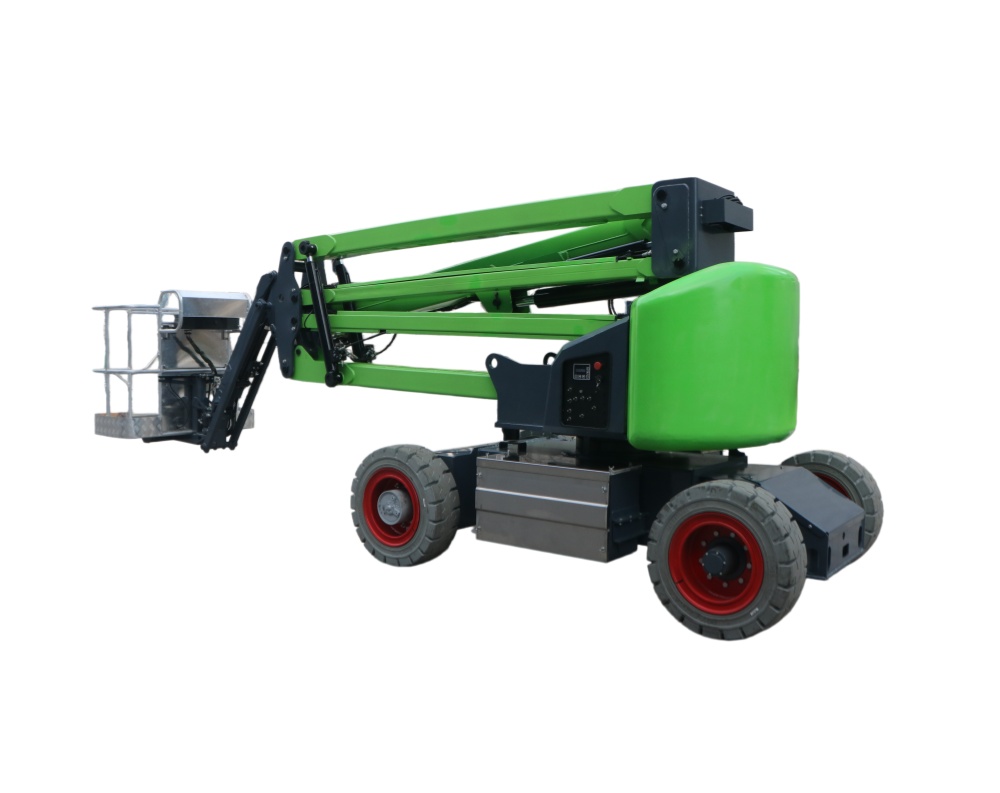

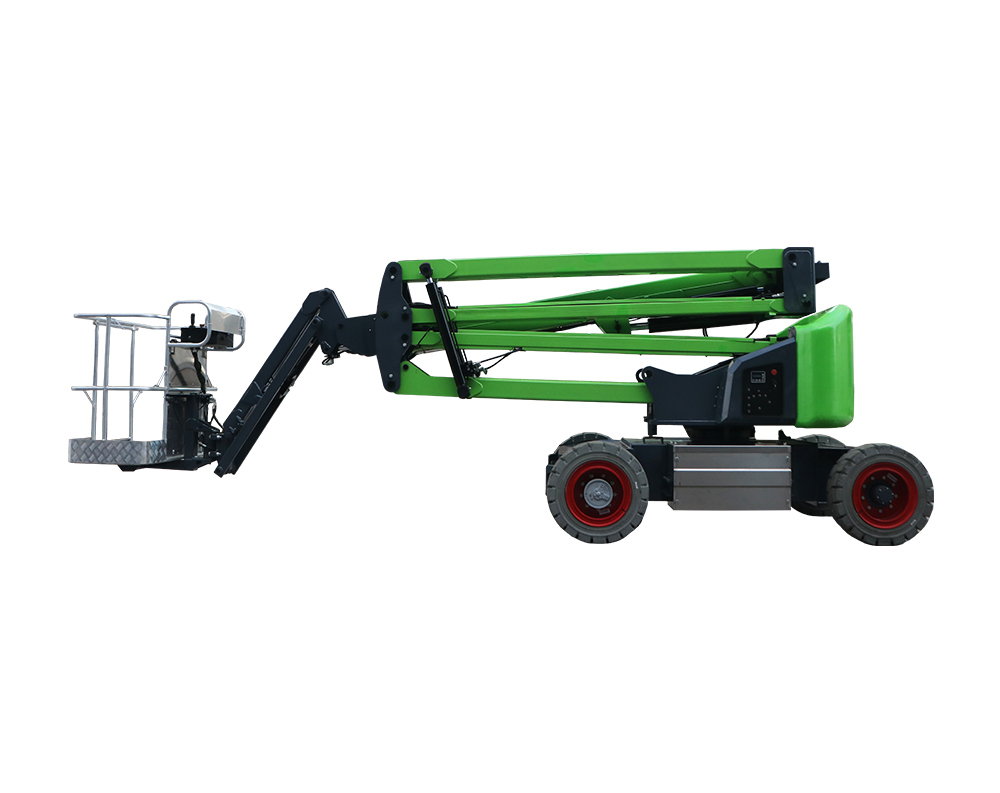

14 m Self-propelled lift (SPL14)
The SPL14 is a 14m self-propelled boom lift designed for construction, warehouse service, facility maintenance and MEP installation. It combines compact maneuverability with greater telescopic reach for efficient elevated work indoors and outdoors.
- 14m working-height class for medium-height access projects
- Self-propelled mobility for fast repositioning between work areas
- Stable platform, emergency stop and overload protection features
- OEM/ODM configuration, global delivery and after-sales support
Compare the full self-propelled boom lift range or request an SPL14 quotation from ZMT Machinery.
SPL14 Self-Propelled Boom Lift Specifications
| Model Type | V14M |
|---|---|
| Max. Working height | 15.83 m |
| Max. Platform height | 13.83 m |
| Max. up and over clearance | 7.1 m |
| Max. Working radius | 7.4 m |
| Platform width | 0.76 m |
| Platform length | 1.4 m |
| Height - stowed | 2.0 m |
| Length - stowed | 6.3 m |
| Width | 1.95 m |
| Wheelbase | 2.0 m |
| Ground clearance - center | 0.25 m |
| Max. Lift capacity | 230 kg |
| Number of platform occupants | 2 |
| Platform rotation | ±80° |
| Turntable rotation | 355° |
| Vertical jib rotation (up/down) | ±70° |
| Drive speed - stowed | 5 km/h |
| Gradability - stowed | 35% |
| Max. Working angle (Tilt sensor activation) | 3° |
| Turning radius (outside) | 3.5 m |
| Drive and steer | 2×2 |
| Weight | 4860 kg |
| Battery | 48V/250Ah |
| Control voltage | 24V |
| Pump motor | 4 kw |
| Drive motor | 3.3 kw |
