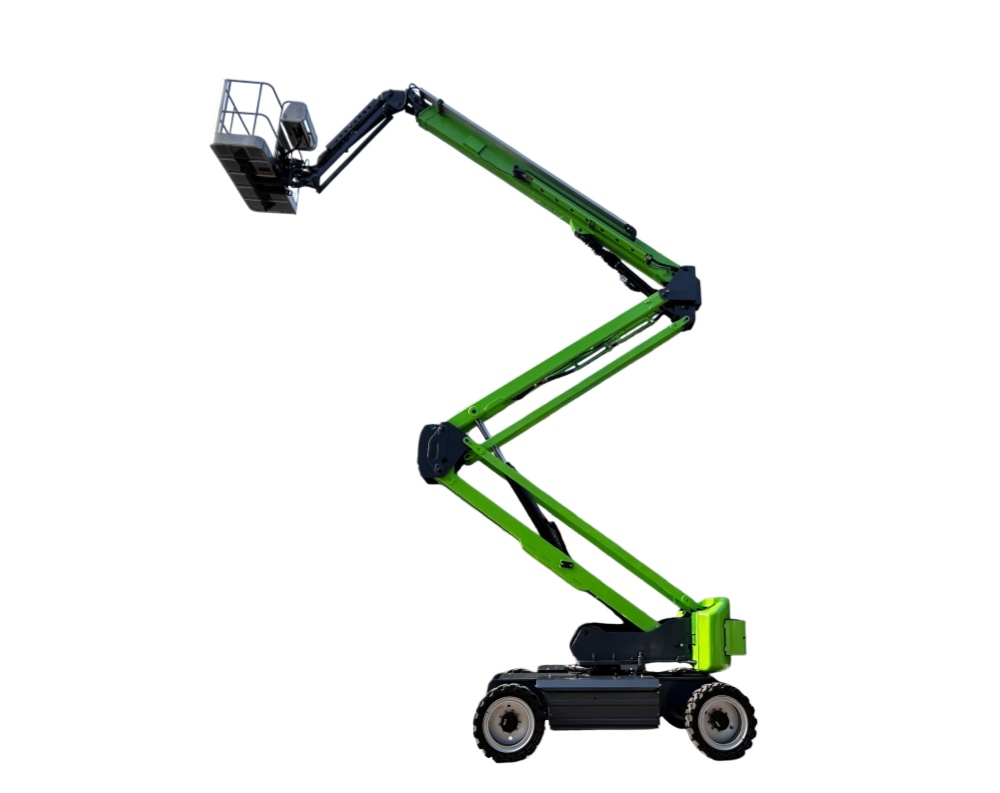

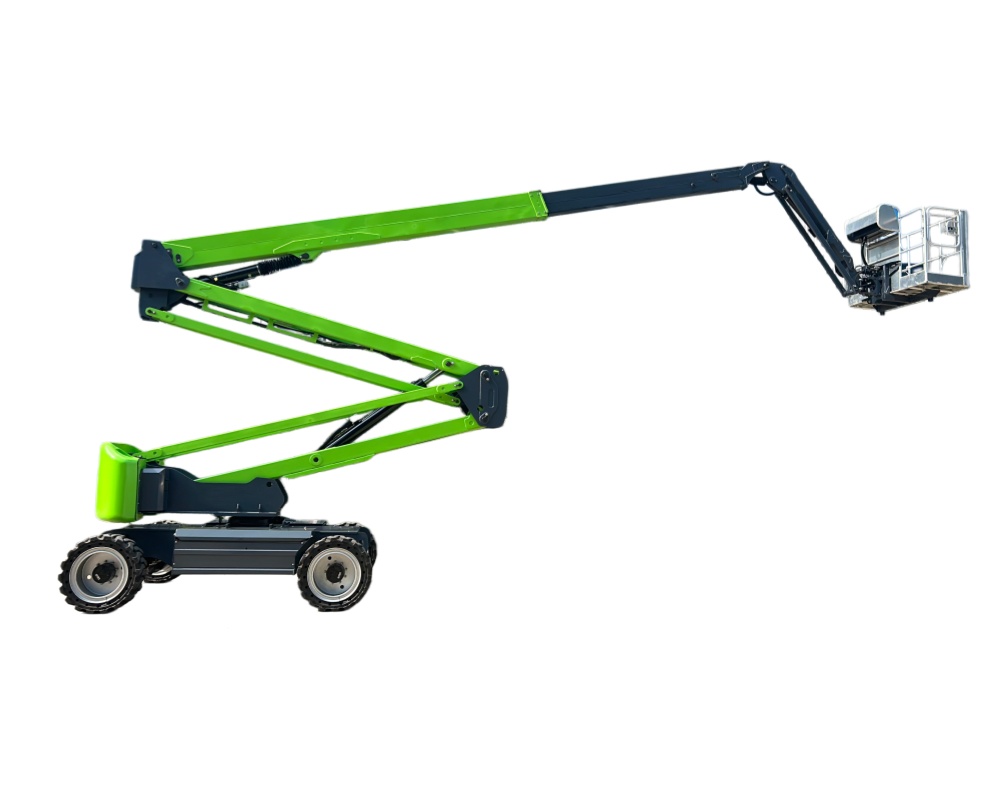

18 m Self-propelled lift (SPL18)
The SPL18 is an 18m self-propelled boom lift built for steelwork, plant maintenance, exterior construction and infrastructure projects. Its extended reach helps crews work efficiently at higher access points while maintaining stable platform performance.
- 18m working-height class for demanding high-access applications
- Self-propelled mobility for efficient movement across project sites
- Operator-focused controls with emergency stop and overload protection
- OEM/ODM customization, export support and worldwide delivery
Compare ZMT self-propelled boom lifts or request an SPL18 project quotation.
18M Self-propelled lift(SPL18)
| Model Type | V18 |
|---|---|
| Max. Working height | 20.2 m |
| Max. Platform height | 18.2 m |
| Max. up and over clearance | 8.0 m |
| Max. Working radius | 11.6 m |
| Platform width | 0.71 m |
| Platform length | 1.8 m |
| Height - stowed | 2.38 m |
| Length - stowed | 8.49 m |
| Width | 2.49 m |
| Wheelbase | 2.5 m |
| Ground clearance - center | 0.3 m |
| Max. Lift capacity | 230 kg / 350 kg |
| Number of platform occupants | 2/3 |
| Platform rotation | ±80° |
| Turntable rotation | 360° |
| Vertical jib rotation (up/down) | ±70° |
| Drive speed - stowed | 4.8 km/h |
| Gradability - stowed | 45% |
| Max. Working angle (Tilt sensor activation) | 3° |
| Turning radius (outside) | 5.0 m |
| Drive and steer | 4×2 |
| Weight | 9100 kg |
| Battery | 48V 420 Ah |
| Control voltage | 24 V |
| Pump motor | 12 kw |
| Drive motor | 3.3 kw |
