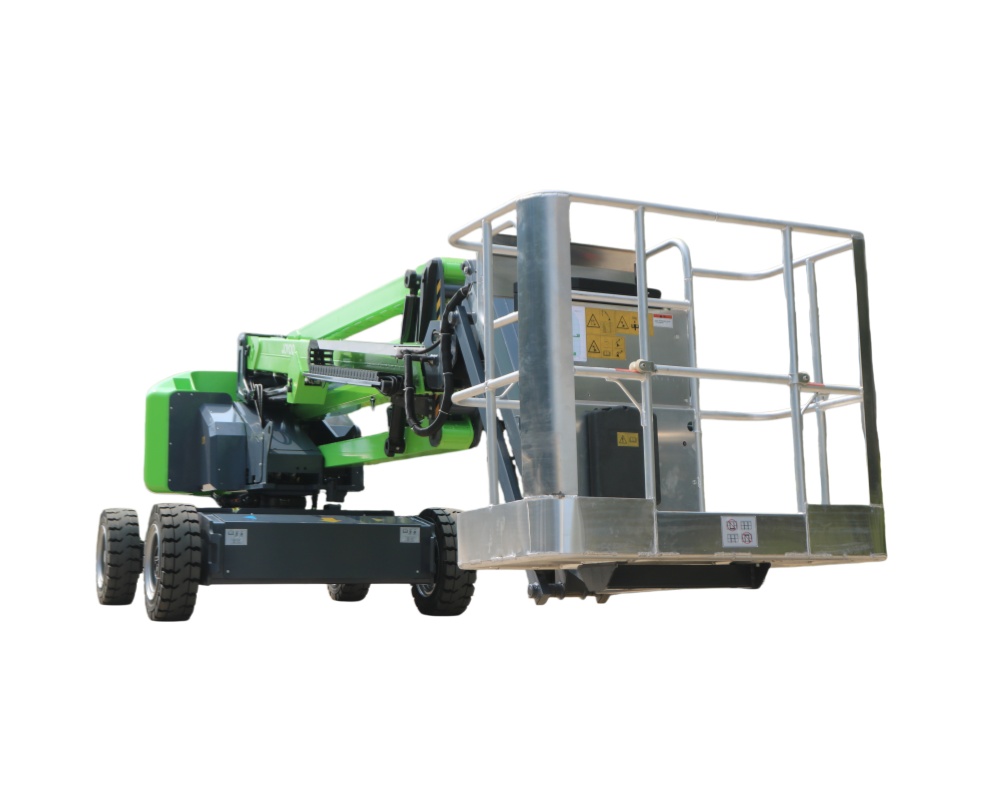

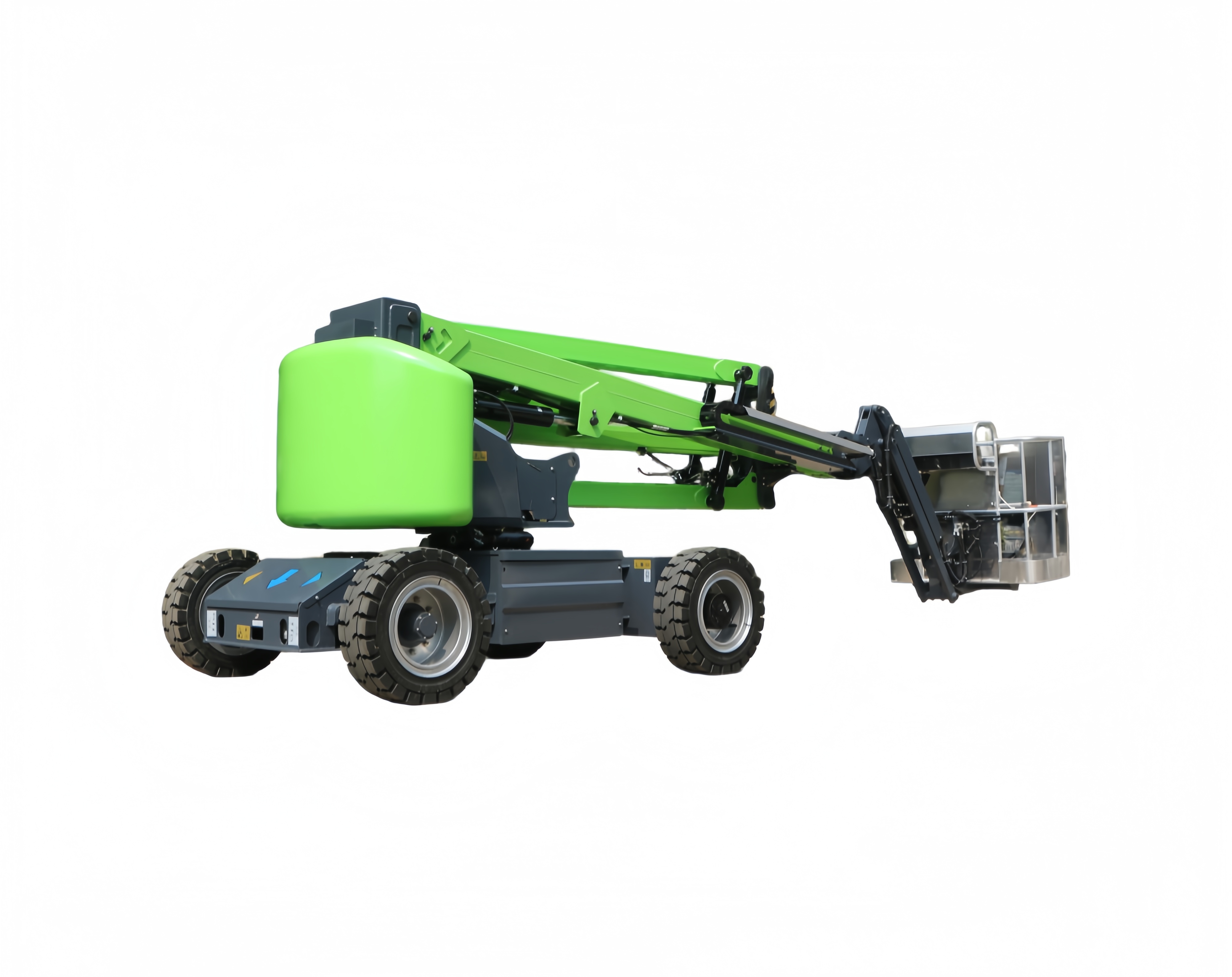

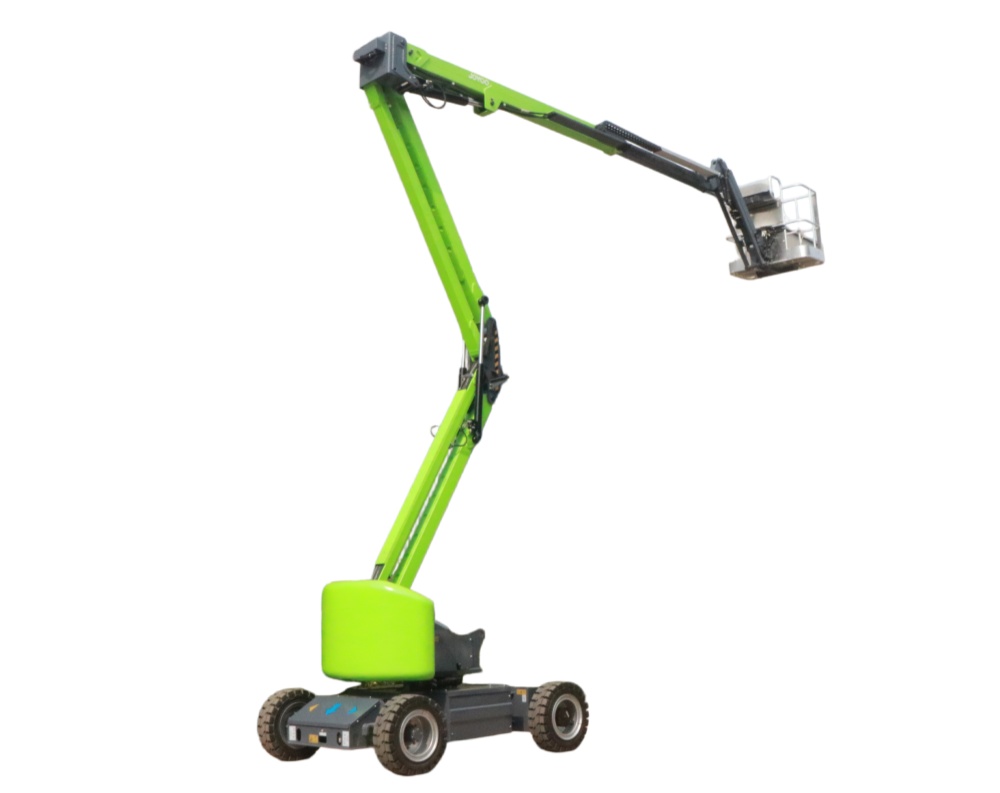

16 m Self-propelled lift (SPL16)
The SPL16 is a 16m self-propelled boom lift for industrial maintenance, equipment installation, facade work and construction projects. Its extended telescopic reach and stable platform support efficient access across larger indoor and outdoor job sites.
- 16m working-height class for elevated installation and maintenance
- Self-propelled travel for productive movement around larger sites
- Stable lifting performance with emergency and overload protection
- OEM/ODM options, export packing, global delivery and technical support
Review all self-propelled boom lift models or contact ZMT Machinery for an SPL16 quote.
16M Self-propelled lift(SPL16)
| Model Type | V16M |
|---|---|
| Max. Working height | 17.6 m |
| Max. Platform height | 15.6 m |
| Max. up and over clearance | 7.2 m |
| Max. Working radius | 8.8 m |
| Platform width | 0.76 m |
| Platform length | 1.4 m |
| Height - stowed | 2.0 m |
| Length - stowed | 6.9 m |
| Width | 2.25 m |
| Wheelbase | 2.3 m |
| Ground clearance - center | 0.28 m |
| Max. Lift capacity | 230 kg |
| Number of platform occupants | 2 |
| Platform rotation | ±80° |
| Turntable rotation | 355° |
| Vertical jib rotation (up/down) | ±70° |
| Drive speed - stowed | 5 km/h |
| Gradability - stowed | 30% |
| Max. Working angle (Tilt sensor activation) | 3° |
| Turning radius (outside) | 4.7 m |
| Drive and steer | 2×2 |
| Weight | 5730 kg |
| Battery | 48V / 320Ah |
| Control voltage | 24 V |
| Pump motor | 4 kw |
| Drive motor | 3.3 kw |
